Cubicle Curtain Tracks

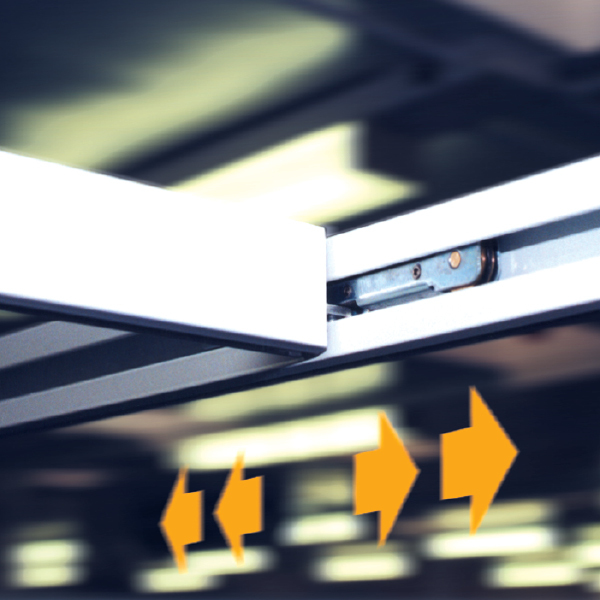

101 Mobile Track System

The rigid, high-grade aluminium profile section provides a perfect core to the mobile dividing rails of the Movatrack 101 mobile curtain divider track system. This unique system is supplied as standard in white powder-coated finish and utilises maintenance-free, wheeled roller hooks for jam-free use. White suspension hangers fitted equidistant along track length for suspended track solutions or directly mounted to the ceiling as required. Moveable divider tracks within the outer frame as required. Designed to give years of trouble-free service, this curtain divider track system uses die-cast aluminium wall shoes for a secure locating where tracks meet the wall, unless directly ceiling fixed. Supplied with a curtain removal point as standard.

The mobile dividing rails of the 101 mobile curtain divider track system are a unique feature that revolutionises space utilisation in hospital wards. Cubicle widths can be altered in seconds by nursing staff in response to changes in medical requirements such as patient care or amount of equipment needed. If a spare dividing rail is provided, an extra bed-space can be brought quickly into use if required – with patient privacy upheld and maintained. The system comprises of a track, with curtains, across the front of a row of bed cubicles, and a back track, without curtains, fixed to the wall behind the beds. Mobile trolleys run within special slots in these tracks, and carry the mobile dividing rails, with curtains, smoothly and quietly on neoprene-tyred wheels. The 101 includes all the advantages of The Movatrack 100 cubicle track and is fully compatible with it. The strong aluminium sections have a white powder-coated finish as standard.

Any RAL colour available to order; Cubicle numbering system; Stainless steel roller hooks or rings.

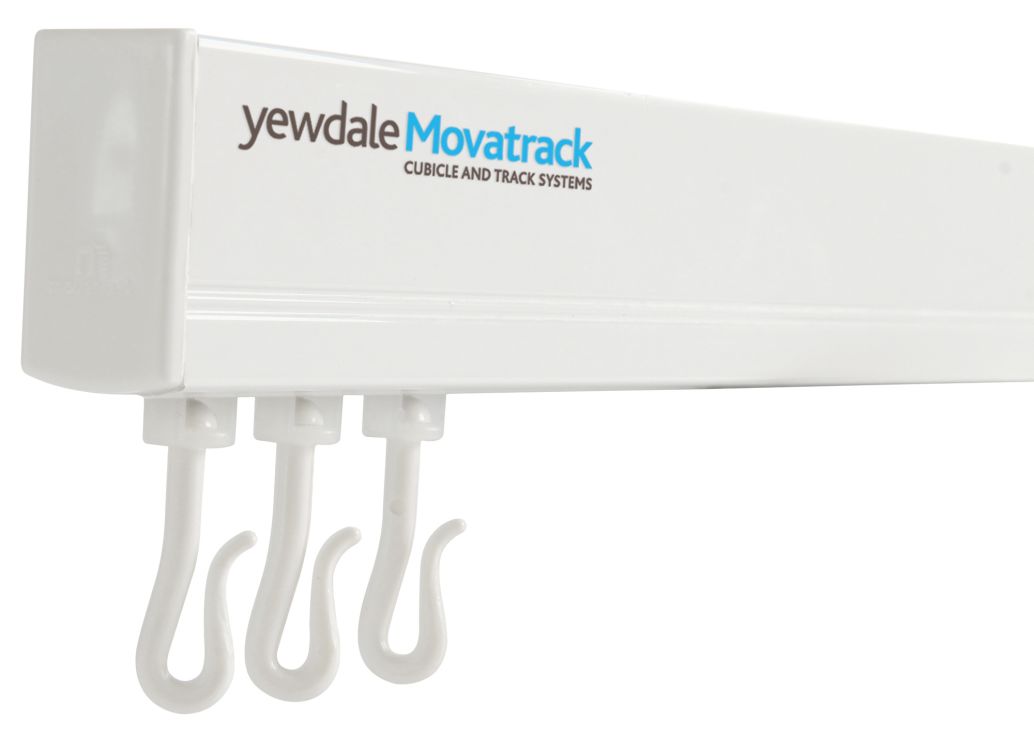

100 Curtain Divider Track

The rigid, high-grade aluminium track section and maintenance-free, wheeled roller hooks are just an introduction to the many features of the Movatrack 100 curtain divider track system, which is in use in many hospitals globally. Designed to give years of trouble-free service, this curtain divider track system uses die-cast aluminium wall shoes for a secure locating where tracks meet the wall, and suspension hangers for a rigid connection to the ceiling, unless directly ceiling fixed. Supplied with a curtain removal point as standard.

Strength and simplicity make 100 track system the first choice for a full number of divider / screen applications. The maintenance-free, premium quality track system has an attractive, all-enclosed, flat top aluminium profile requires no additional expensive inserts, offering you more for less. A reliable partner for the long-term duration, it is able to span 3.0 metres between hangers, keeping both sight lines clear and installation costs down. In a similar fashion, curtain removal points are provided as standard on every track for added convenience when replacing curtains. The self-lubricating roller runner hooks are quickly loaded into the track through this point of access, making the process a pleasurable experience. Complies fully with the requirements of HTM66.

Silver anodised track; Any RAL colour available to order; Biosafe® antibacterial treatment option available within white powder-coated finish only; Cubicle numbering system; Track mounted uplighters; Stainless steel roller hooks or rings.

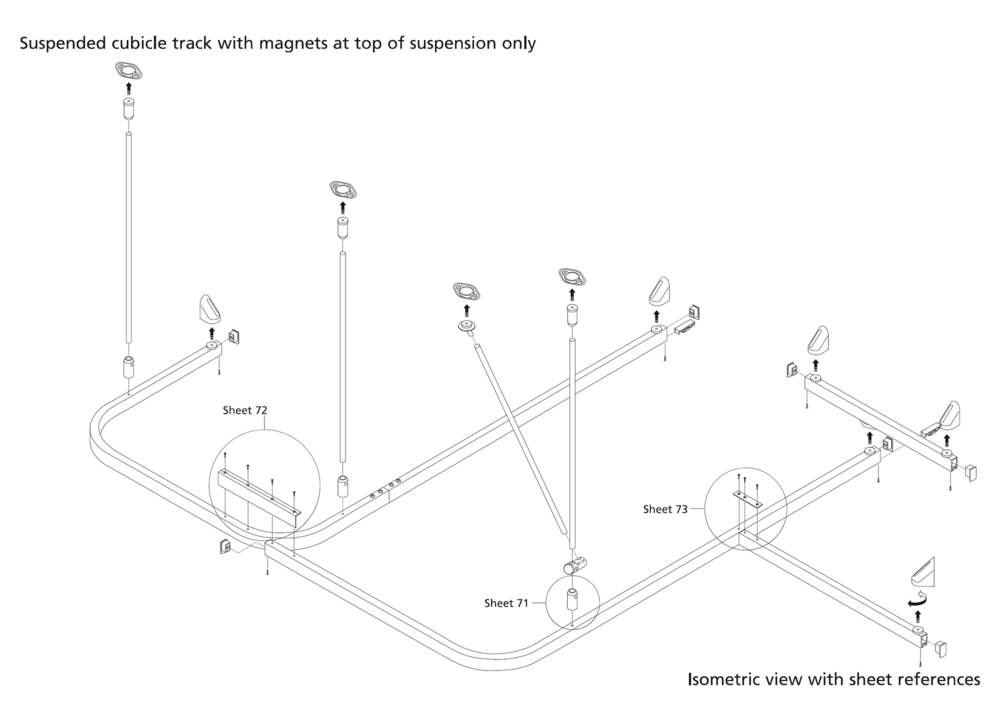

Suspended cubicle track with magnets

K100 Suspended cubicle track divider with magnets

The rigid, high-grade aluminium track section and maintenance-free, wheeled roller hooks are just an introduction to the many features of the K100 curtain divider track system, which is in use in many hospitals globally. Designed to give years of trouble-free service and made specifically for high-risk mental health areas, this curtain divider track system uses magnetic wall-fix brackets where the tracks meet the wall, and magnetic top-fix brackets where suspension hangers meet the ceiling. This ensures that, under excess load, the suspension hanger separates from the ceiling bracket leaving no remaining points of ligature – a highly essential safety feature, as it is surprisingly easy to attach a cord to a fixed vertical rod and use it as a ligature point. Supplied with a curtain removal point as standard.

Strength and simplicity make the K100 the first choice for a full number of applications. The maintenance-free, premium quality track system has a strong and attractive aluminium profile which offers you more for less. It is able to span 2.5 metres between hangers, providing long-term reliability. In a similar fashion, curtain removal points are provided as standard on every track for added convenience when replacing curtains. The self-lubricating roller runner hooks are quickly loaded into the track through this point of access, making the process an easy experience. Mounted on magnetic brackets for 100% fail-safe anti-ligature functionality. Complies fully with the requirements of HTM66.

Silver anodised track; Any RAL colour available to order; Biosafe® antibacterial treatment option available within white powder-coated finish only.

Direct Ceiling fix cubicle track with magnets

The rigid, high-grade aluminium track section and maintenance-free, wheeled roller hooks are just an introduction to the shower track system. Designed to give years of trouble-free service and specifically for high-risk mental health areas, this shower track system uses magnetic wall-fix brackets where the tracks meet the wall, and magnetic top-fix brackets where suspension hangers meet the ceiling. This ensures that, under excess load, the suspension hanger separates from the ceiling bracket leaving no remaining points of ligature – a highly essential safety feature, as it is surprisingly easy to attach a cord to a fixed vertical rod and use it as a ligature point.

Strength and simplicity make the K100 the first choice for a full number of applications. The maintenance-free, premium quality track system has a strong and attractive aluminium profile which offers you more for less, in that it is able to span 2.5 metres between hangers, providing long term reliability. In a similar fashion, curtain removal points are provided as standard on every track for added convenience when replacing curtains. The self-lubricating roller runner hooks are quickly loaded into the track through this point of access, making the process easy. Mounted on magnetic brackets for 100% fail-safe anti-ligature functionality.

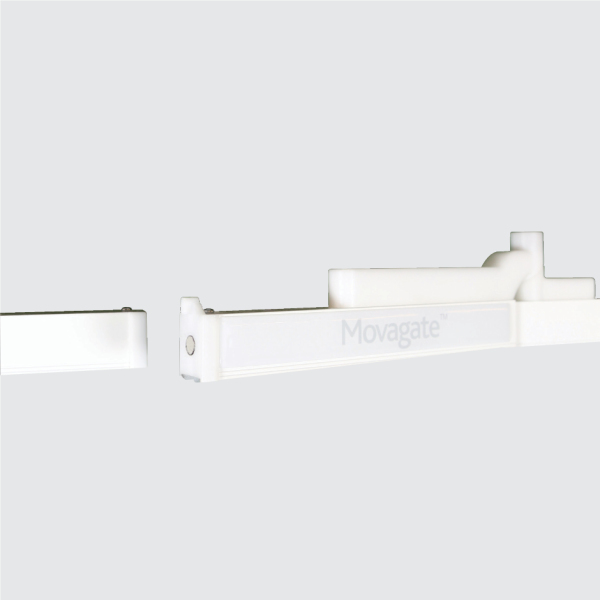

Movagate

The Movagate is the ultimate solution for suspended curtain track system cubicle tracks where there is a requirement for a hoist. Designed with a robust sprung-loaded hinge and magnetic latch technology, the Movagate allows the hoist to pass swiftly and easily through the track whilst maintaining 100% patient privacy at all times. The maintenance-free Movagate is supported with white suspended V-hangers to ensure a firm and positive installation. White powder-coating incorporating Biosafe antimicrobial treatment.

Movagate provides the ultimate solution. Due to the rigidity of the urtain divider track system, this simple but effective solution is designed to be retro-fitted to any existing arrangement or installed with a new installation of curtain divider track. Available worldwide, Movagate has enabled Architects, Trusts and Contractors to approach both patient handling and privacy in a new light and is now revolutionising the design of patient areas.

The 300 telescopic divider rail

The rail has a high-grade, yet lightweight aluminium wall mounted rail as standard. Folding mechanism utilises aluminium components for long-term reliability. The curtain arm is adjustable in length up to 2100mm depending on model. Curtains are mounted to the rail by large plastic loops for ease of application.

The 300 telescopic divider is designed specifically for doctors surgeries, hospitals, and other healthcare institutes where space and privacy needs conflict, or where a fixed track is not felt suitable. This unique system revolutionises space utilisation and caters for overhead hoists and other lifting equipment. The system comprises of a telescopic divider rail with light weight flame retardant curtains, that can go from its almost unseen closed position against the wall, to a full screen in 10 seconds. By having the choice of length of telescopic arms along with colours of curtains, ensures the product fits well within its environment.

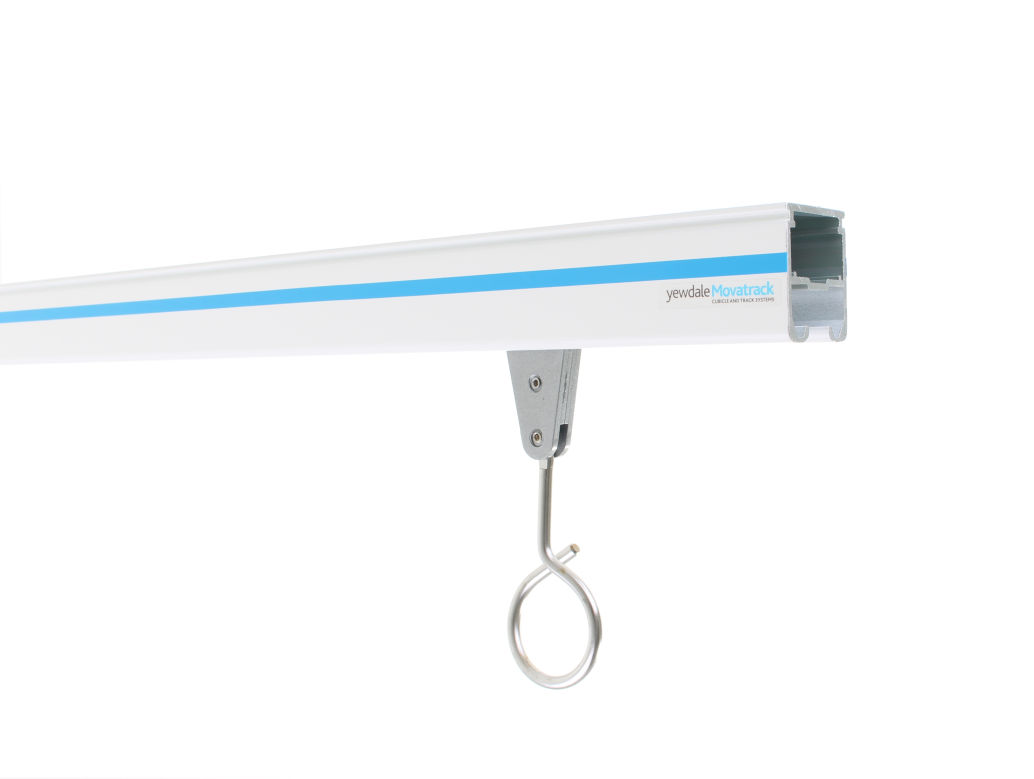

IV200 Intravenous Support Track (Heavy Duty)
The IV200 heavy duty intravenous support track is machined from a rigid, high-grade aluminium profile section and mounts directly to the ceiling as standard. This unique system is supplied as standard in a hygienic, white powder-coated finish and utilises heavy duty, self-locking wheeled trolleys for dependable support.

Telescopic carrier trees are available in four sizes to suit a range of track heights; all have simple release adjustment for accurate height control of the five stainless steel hooks. Pump carriers have a 20mm diameter pole to which syringe and infusion pumps may be clamped; they can be used alone for syringe pumps, or positioned alongside a carrier tree for infusion use, and with a load capacity of 30kg will take up to four pumps with ease. The optional pump carrier with power supply solves the problem of cable management, with an NHS specification supply cable attached to the top of the pump carrier and across to the wall at ceiling height.

IV400 medium duty intravenous support track

The track is machined from a rigid, high-grade aluminium profile section and can be mounted directly to the ceiling or, more usually, suspended at cubicle track height of 2.1m. This unique system is supplied as standard in hygienic, white powder-coated finish and utilises economical 2-point drip carriers with nylon runners. Able to span 2.5 metres without support, and includes all necessary fittings.

Able to be used in conjunction with the movatrack 101 mobile curtain divider system, providing full IV provision to any point within the cubicle/bed bay area.
