Overhead and Side-Guiding Roller Blinds

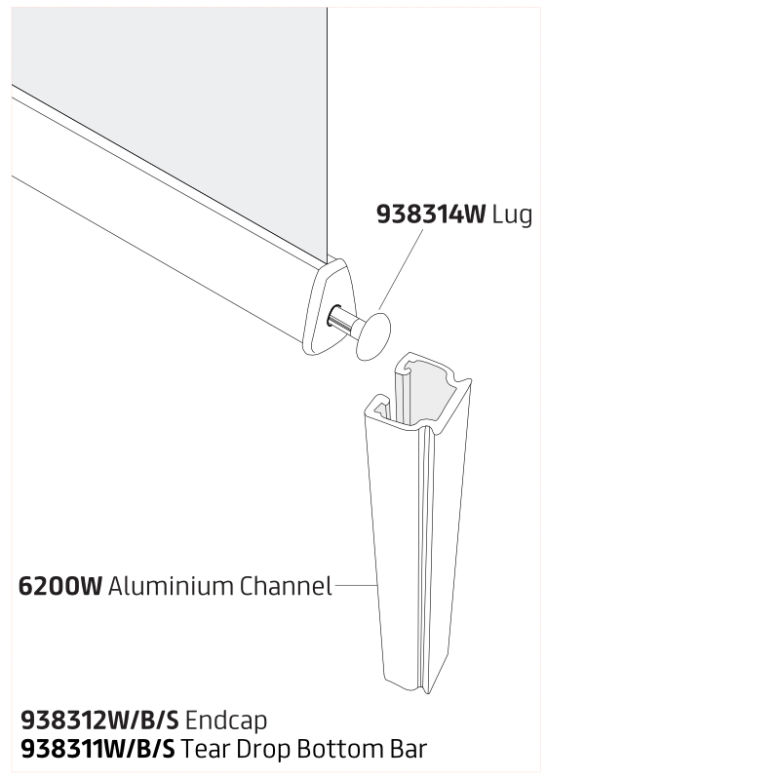

Channel Side-guiding System

Introducing the channel side-guiding system. It boasts a slim aluminum side channel profile for vandal-resistant blind alignment, with plastic control lugs fitted into the Tear Drop bottom bar endcaps for a secure yet permanently fluid up/down movement of the blind in any situation

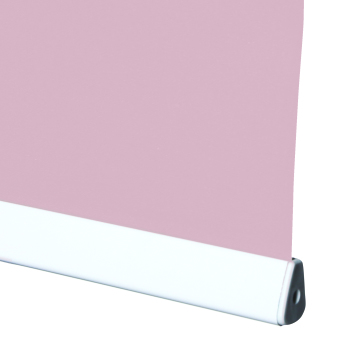

Developed to ensure a higher level of tamper resistance to roller blinds throughout the portfolio, this side-guiding system prevents the hanging bottom bar from excessive movement, either by air movement or persons around it. This helps to increase the longevity of roller blinds in high usage public areas such as colleges, schools, libraries etc. This channel side-guiding system compliments the Tear Drop bottom bar option and offers a greater light block solution than the popular wire side guide system.

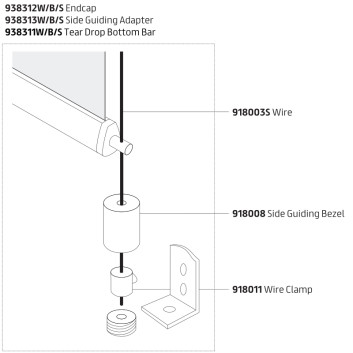

Wire Side-guiding System

The wire side-guiding system was developed to ensure that roller blinds could be kept in a closed position regardless of the forces of gravity or movement of air around it. The rotatable bottom bar end-cap adaptor is held securely to the stainless steel wire, which provides the robust positioning mechanism; this, in turn, is held under tension by a metal bezel.

Developed to ensure a higher level of tamper resistance to roller blinds throughout the portfolio, this side-guiding system prevents the hanging bottom bar from excessive movement, either by air movement or people around it. This helps to increase the longevity of roller blinds in high usage areas and is specified regularly in the education, healthcare and commercial office environment sectors. This wire side-­guiding system offers a barely-noticeable solution for use in almost every application, and compliments the Tear Drop bottom bar option perfectly.


R26 Overhead Corded

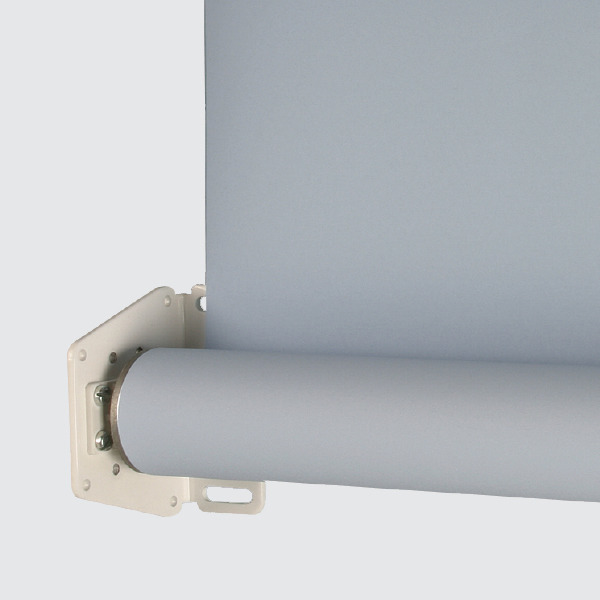

The R26 overhead corded roller blind comes with a pull-cord and pulleys as standard. White plastic brackets for face or top fixing with 25mm aluminium barrel or white metal brackets for 57mm aluminium barrel, and strong, constant tension spring mechanism. The fabric is bonded onto the barrel, and features a white Tear Drop aluminium bottom bar. There is a pull-cord with cleat, and pulleys for single or double-corded operation.

Ideal for relatively inaccessible locations, the R26 utilises tried and tested spring components and simple manual operation. Subject to size limitations, it is able to cope with sloping or even horizontal roof windows. The fabric is bonded to the barrel and locked into the bottom bar. It is supported by sturdy brackets.

Overhead Crank

This R56 overhead roller blind system is supplied with crank operation. White aluminium brackets allow for top or face fixing with 50mm and 57mm grooved aluminium barrels. The fabric is mounted onto a sprung 57mm aluminium barrel whilst at the other end it is fitted to a white Tear Drop aluminium bottom bar, attached to two draw tapes. These tapes are attached between flanged guides to the 50mm drive barrel, operated by 1:4 gear control mechanism and crank handle.

Both the R56 and the R57 roller blinds are the ultimate in choice for the shading requirements for sloping or horizontal roof windows. With heavy duty componentry and a powerful spring action, these blinds may be confidently specified for awkward or inaccessible locations. The detachable magnetic crank handle provided with this model removes the common issues associated with locating the drive at height and solves the problem of unauthorised use.

Overhead Crank C56T

Smooth operation and complete control is what makes the C56T overhead cassetted blind so inspiring. The 1:5 gear control crank mechanism allows you to easily operate the blind, and the fabric is held in place in the side channels. This blind is drawn across the window by tensioned spring units in the cassette and the powder-coated aluminium headbox is slim anddiscreet, making it ideal for buildings looking for a stylish overhead blind. The C56T can be made to a maximum size of 3m x 3m. We recommend the SkyShelf for optimum installation within a recess.

The C56T overhead cassetted blind is a diverse, bracketless shading solution that provides control over the amount of light entering a large overhead window. However, unlike other overhead blinds, this solution is discreet. The headbox and side channels are slim and available in black or white powder-coated

R57 Overhead Electric

The overhead roller blind system with 230v AC motor. White aluminium brackets for top or face fixing with 50mm smooth aluminium barrel. The motor is controlled by a switch which may be surface or flush mounted (not supplied). Fabric is mounted onto a sprung 57mm aluminium barrel whilst at the other end it is fitted to a white Tear Drop aluminium bottom bar, attached to two draw tapes. These tapes are attached, between flanged guides, to the 50mm drive barrel, operated by a 230v AC electric motor.

Both the R56 and the R57 roller blinds are the ultimate in choice for the shading requirements for sloping or horizontal roof windows. With heavy duty componentry and a powerful spring action to the fabric roller, these blinds may be confidently specified for awkward or inaccessible locations. The electric motor removes the common issues associated with controlling the unit in these areas and solves the problem of unauthorised use. It can be supplied with a number of remote or group control options including RF and infrared.

Overhead Electric C57T – AC Motor

The C57T overhead electric cassetted blind comes with a 230v AC Tubular Motor as standard. At the touch of a button from the remote switch (sold separately), the blind can open and close, shading ceiling windows with ease. This blind is quietly drawn across the window by tensioned spring units. Fabric is neatly held in place and remains taut by the side channels. The powder-coated aluminium headbox provides a discreet and stylish solution for overhead shading. The C57T can be made to a maximum size of 3m X 3m. We recommend the SkyShelf for optimum installation within a recess.

The C57T provides absolute control over the blind at the touch of a button due to the single channel hand held transmitter, making this blind easy to operate in otherwise difficult areas. The discreet and slim powder-coated aluminium headbox allows the blind to blend in with the interior design of the room whilst providing the shading solution required. This blind is bracket less which eliminates room for light. It is simpler to install in comparison to other overhead blinds.

Overhead Electric

The electric overhead blackout unit with a Yewdale motor. All hardware in black powder-coated aluminium for face or recess fixing and enclosing 53mm and 57mm grooved aluminium barrels. Blackout fabric, with heavy duty bottom rail, is locked into a groove in the barrel and runs in 75mm side channels. Light-transfer baffles are within the side and bottom channels, and the side channels and head-box are fitted with pile-seal for light sealing. Fabric is mounted onto a sprung 57mm aluminium barrel whilst at the other end it is fitted to an aluminium bottom rail, attached to two draw tapes. These tapes are attached, between flanged guides, to the 53mm drive barrel, operated by a 240v AC Yewdale motor.

The C77 blackout unit is the ultimate in choice for 100% light exclusion requirements for sloping or horizontal roof windows when an electrically operated solution is looked for. With heavy duty componentry and tensioning action by powerful spring to the fabric roller, these blinds may be confidently specified for awkward or inaccessible locations. The 240v AC Yewdale motor, which provides the luxury of reliable electrical fingertip control, is housed within the barrel and supported by sturdy, aluminium cassette system.

Overhead Crank

The crank operation overhead blackout unit’s hardware is black powder-coated aluminium for face or recess fixing. Enclosed is a 53mm and 57mm grooved aluminium barrels. Blackout fabric is locked into a groove in the barrel and runs in 75mm side channels. Light-transfer baffles are located within the side and bottom channels, and the side channels and head-box is fitted with pile-seal light sealing. Fabric is mounted onto a sprung 57mm aluminium barrel whilst at the other end is fitted to an aluminium bottom rail, attached to two draw tapes. These tapes are attached, between flanged guides, to the 53mm drive barrel, operated by heavy duty 1:5 gear control mechanism and magnetic detachable crank handle.

The C76 blackout unit is the ultimate in choice for 100% light exclusion requirements for sloping or horizontal roof windows. With heavy duty componentry and tensioning action by powerful spring to the fabric roller, these blinds may be confidently specified for awkward or inaccessible locations. The magnetic detachable crank handle removes the common issues associated with locating the drive at height and solves the problem of unauthorised use.
