Cassette Blinds

All YewdaleDefiant® blinds are carefully built to exacting standards, giving years of trouble-free service. The superior design features and quality components enable them to be confidently specified for the most demanding environments.
Many YewdaleDefiant® blinds feature vandalresistant controls and mechanisms, and are frequently seen in hospitals, schools, colleges and other public buildings, as well as the regular commercial and residential environments.

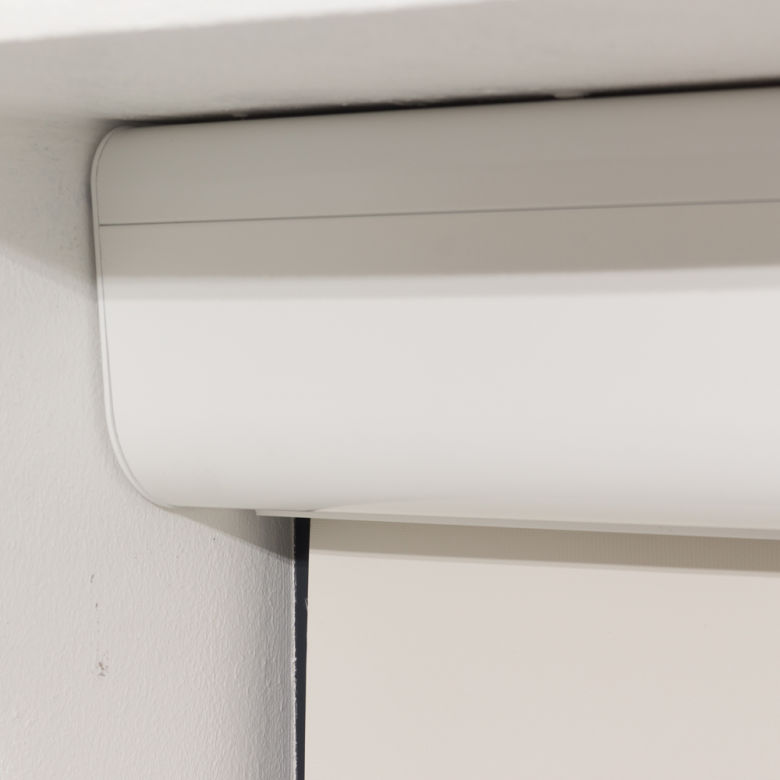

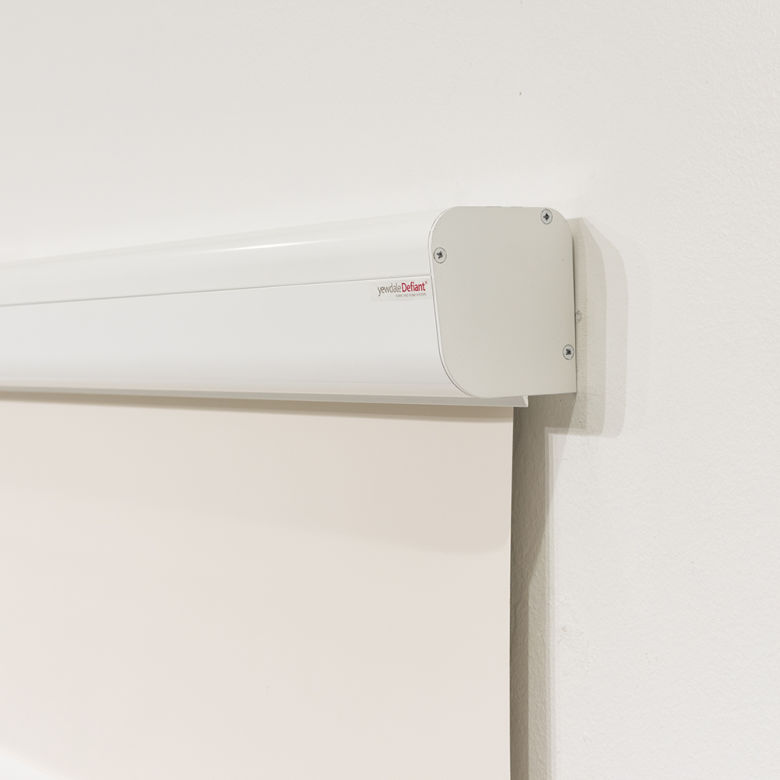

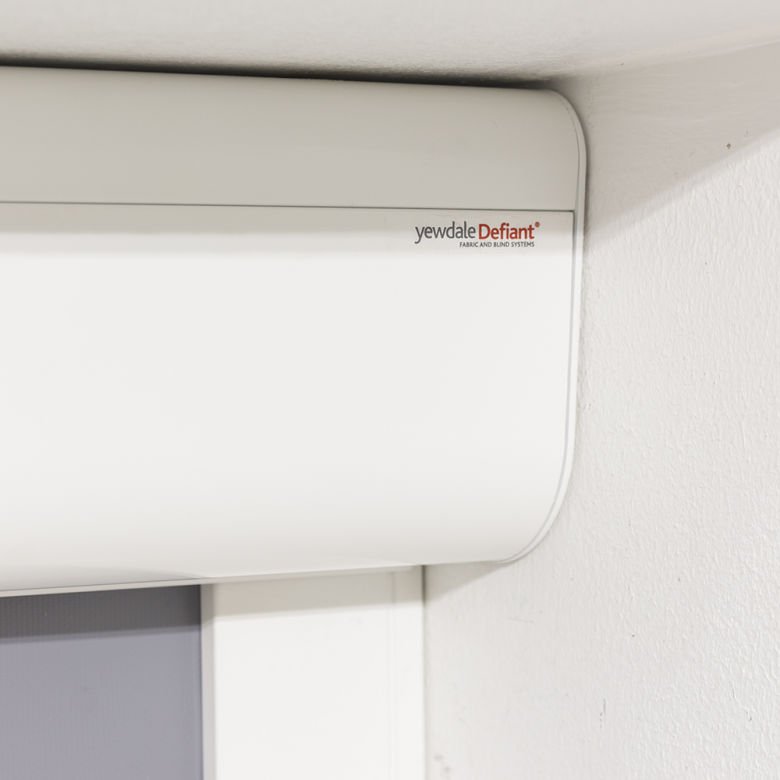

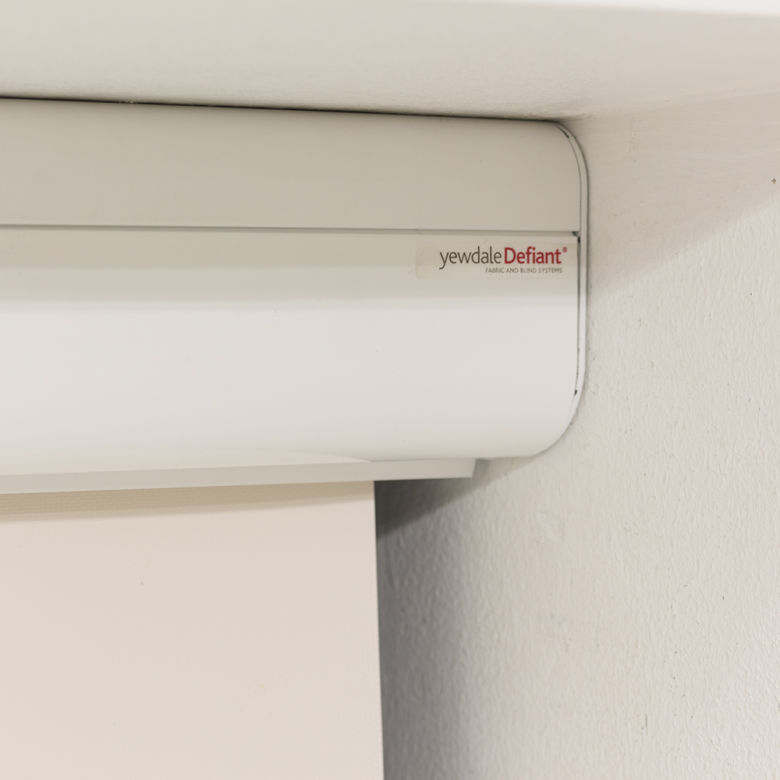

YewdaleDefiant® cassetted blinds give a smooth contemporary style to any window, and help to protect the blind fabric from dust or damage. The C2 range of cassettes offer a pleasing and modern alternative to standard roller blinds incorporating an attractive aluminium head-box to protect and enclose the fabric when it’s not in use for its shading purposes. The C4 cassette range includes side channels as standard. These help to retain the fabric in position, and will also give a degree of light exclusion when used in conjunction with blackout fabric.

The full range is distributed globally through a network of partners providing an unrivalled level of support, and with experienced installation and service teams to exceed your expectations.

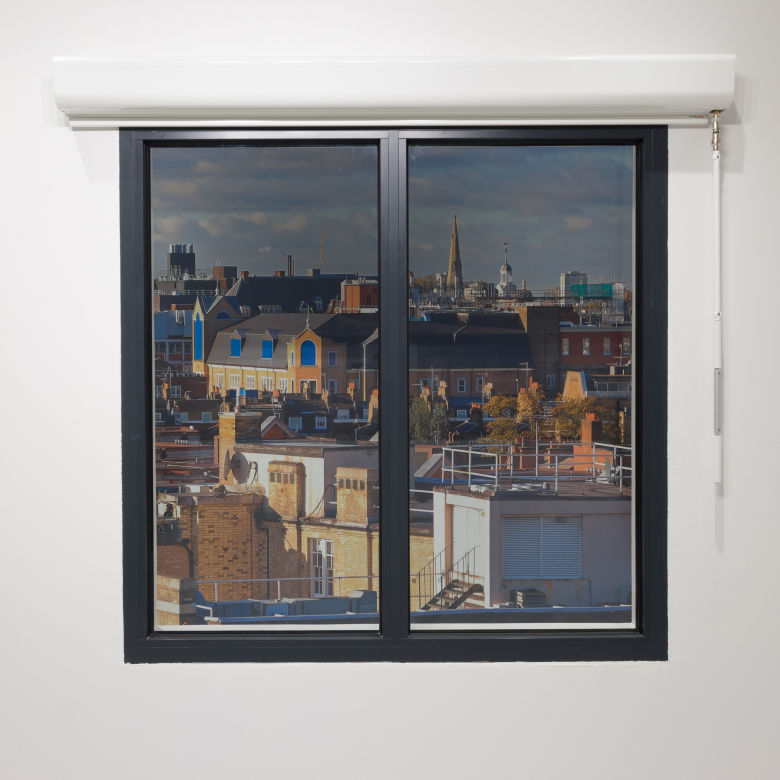

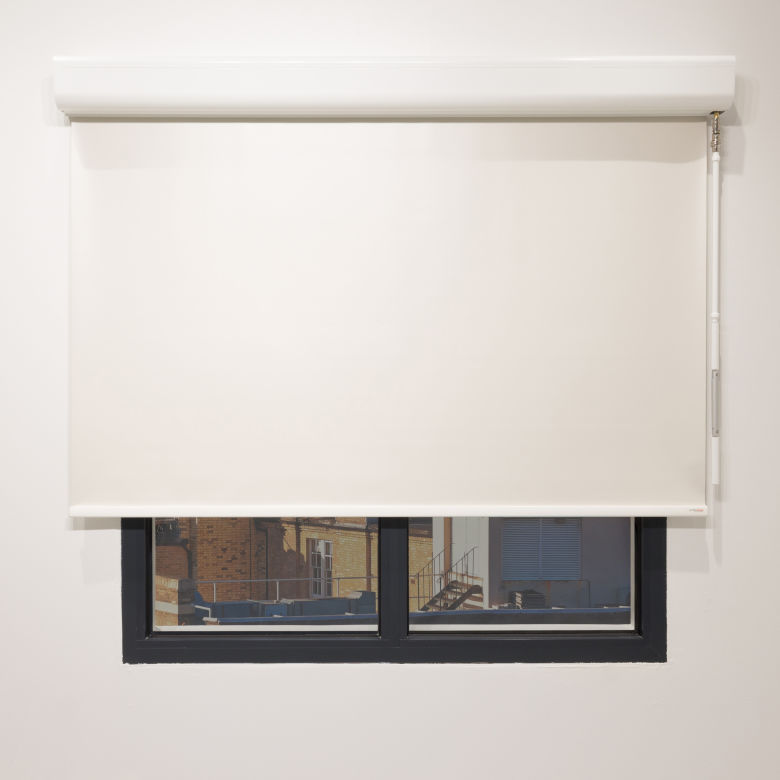

Sidewinder C20

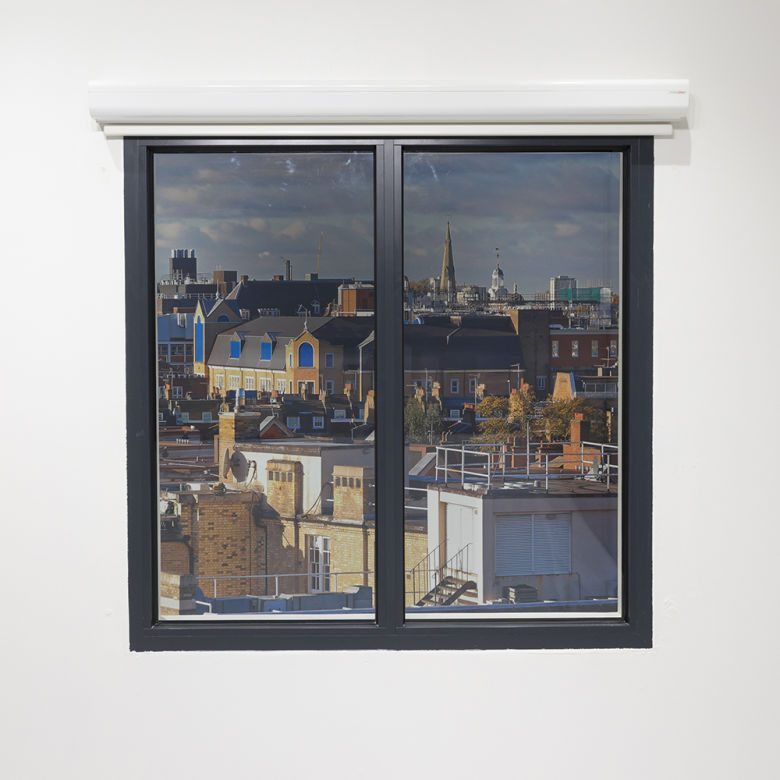

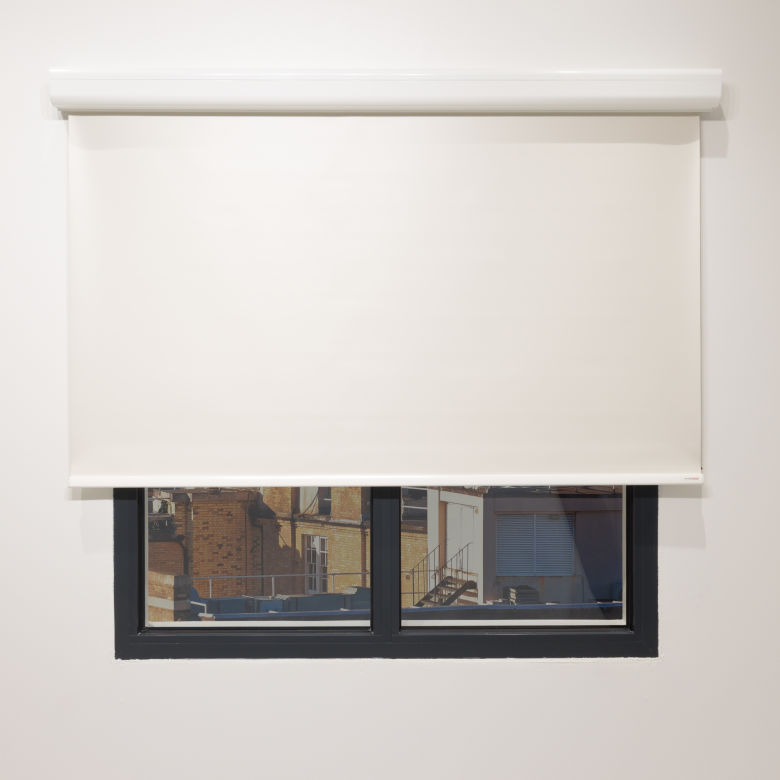

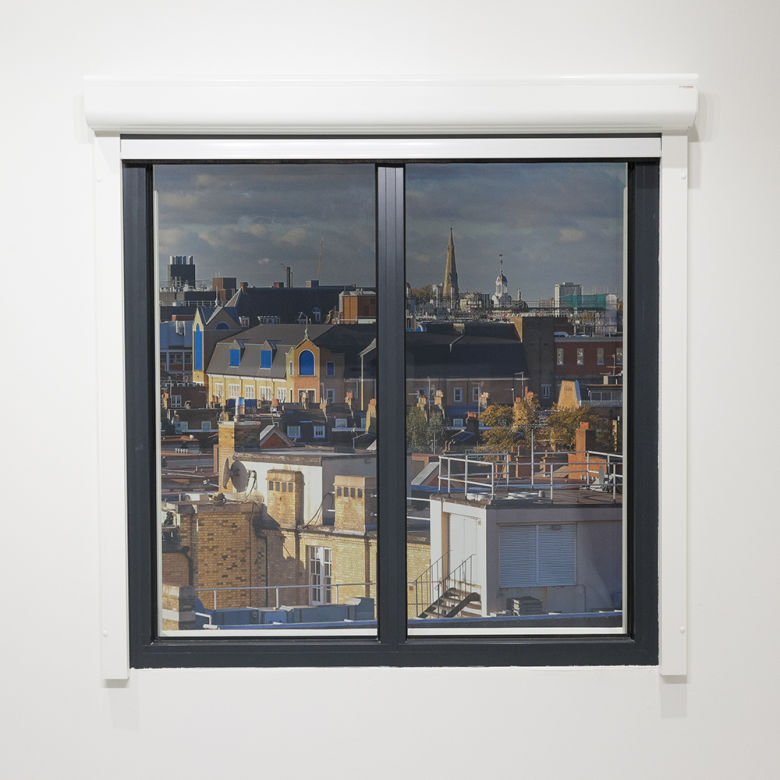

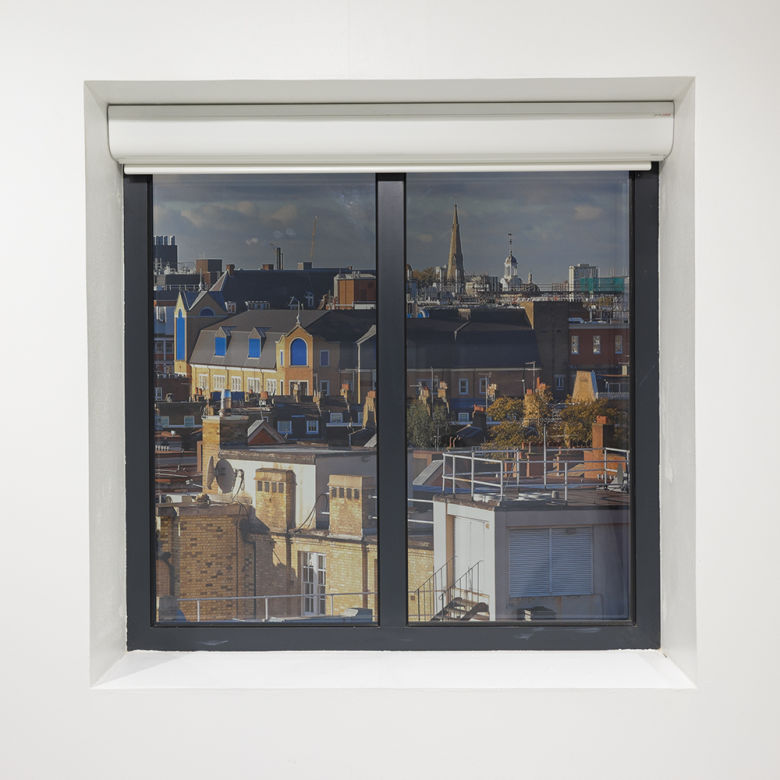

All of the C20 sidewinder cassetted blinds come with an enclosed aluminium head-box as standard. This cassette is designed for top or face fixing and accommodates 32, 45, 53 or 70mm grooved aluminium barrels, depending on blind size and fabric weight. Fabric is locked into a groove in the barrel, and features aluminium bottom bar. A robust Slipstream® sidewinder mechanism provides the effective means of operation with the use of metal control chain, held in place by a chain tidy. Black or white hardware as standard.

The excellent performance of a cassetted blind offers an aesthetically pleasing solution, protecting the fabric in the process. The quality sidewinder mechanisms are simple to operate and allow accurate control of blind position.

Sidewinder C40

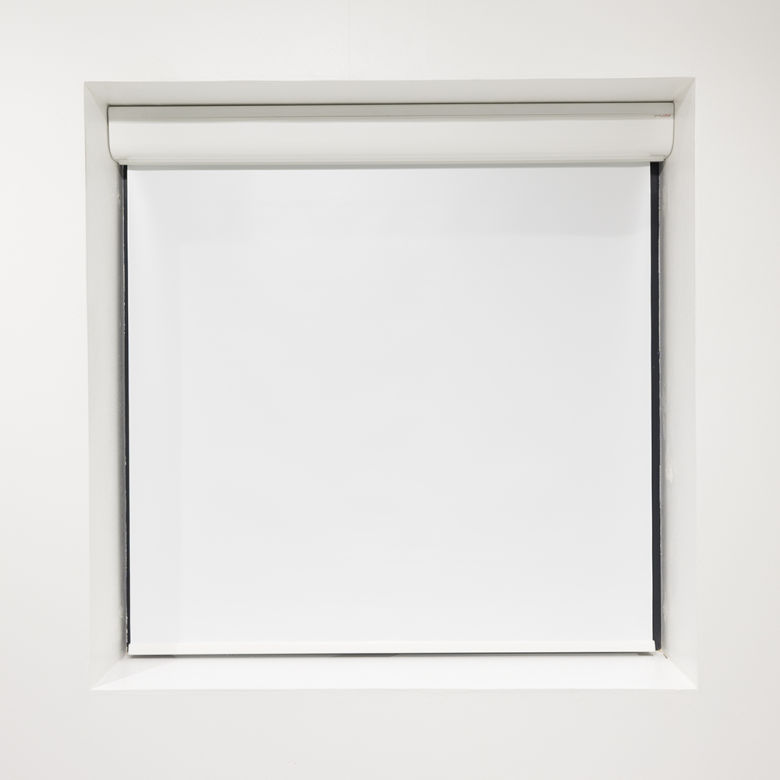

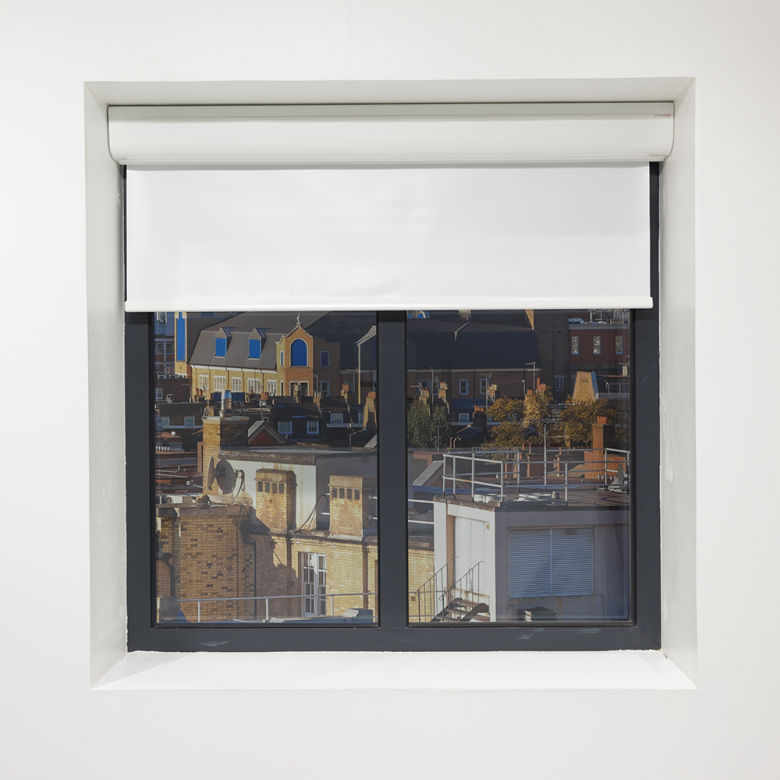

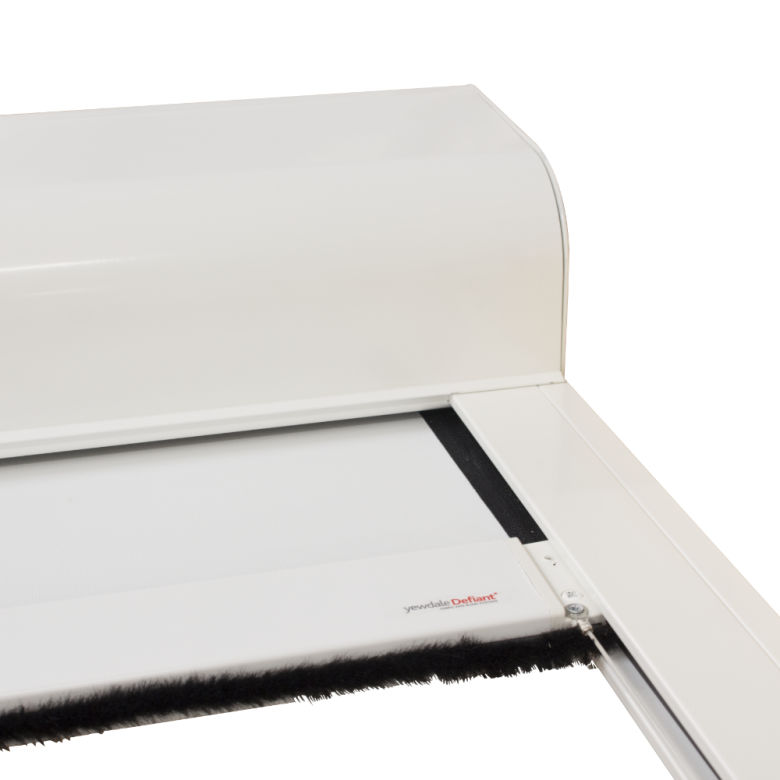

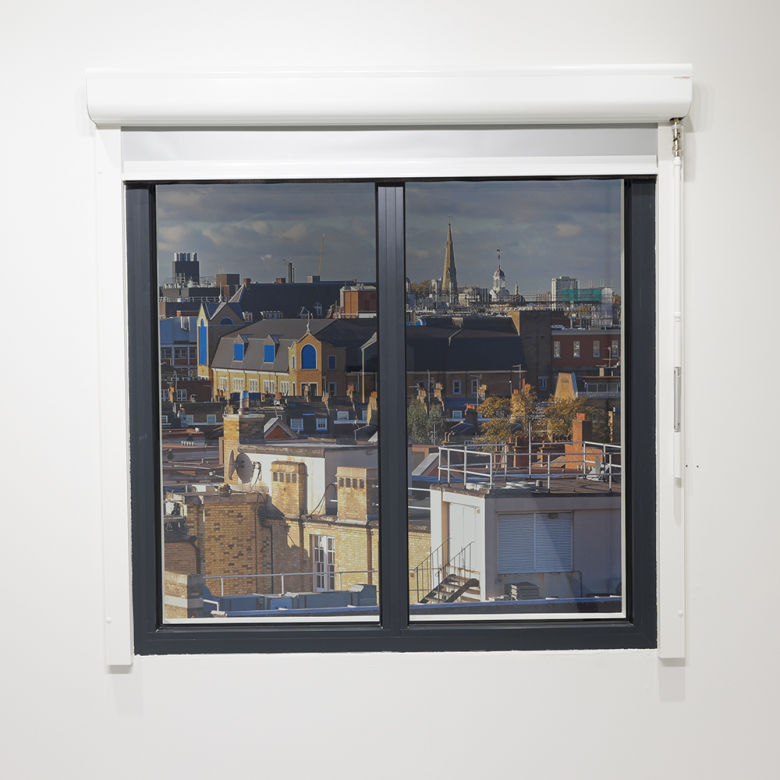

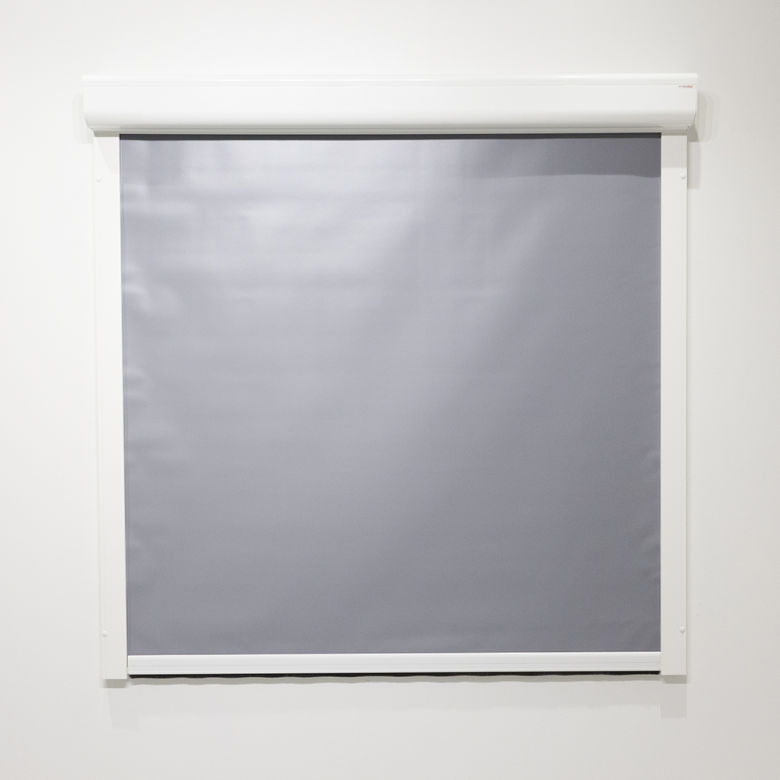

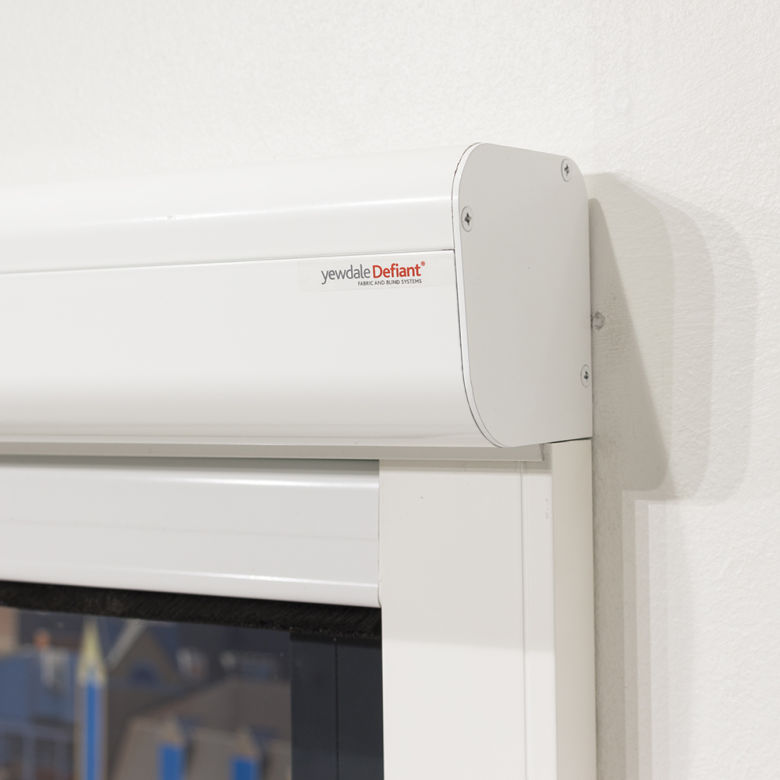

All of the C40 sidewinder cassetted blinds come with an enclosed aluminium head-box and side channels as standard. The cassette is designed for top or face fixing and accommodates 32, 45, 53 or 70mm grooved aluminium barrels, depending on blind size and fabric weight. Fabric is locked into groove in barrel, and features aluminium bottom bar with pile seal. A robust Slipstream® sidewinder mechanism provides the effective means of operation with the use of metal control chain, held in place by a chain tidy. Studs fitted at the edge of the fabric retain it within side channels. Black or white hardware as standard.

The excellent performance of a cassetted blind is further enhanced by the addition of side channels, holding the fabric in place. These side channels also limit the level of light that enters the room, especially if blackout fabric is used. The entire range is offered as an aesthetically pleasing solution, protecting the fabric in the process. The quality sidewinder mechanisms are simple to operate and allow accurate control of blind position.

Slow-Rise Spring C22

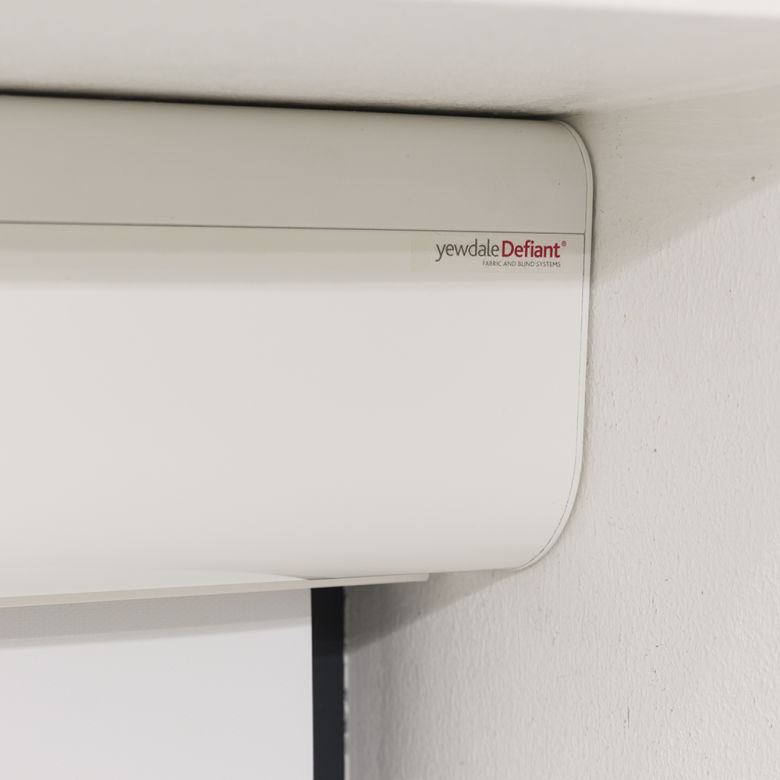

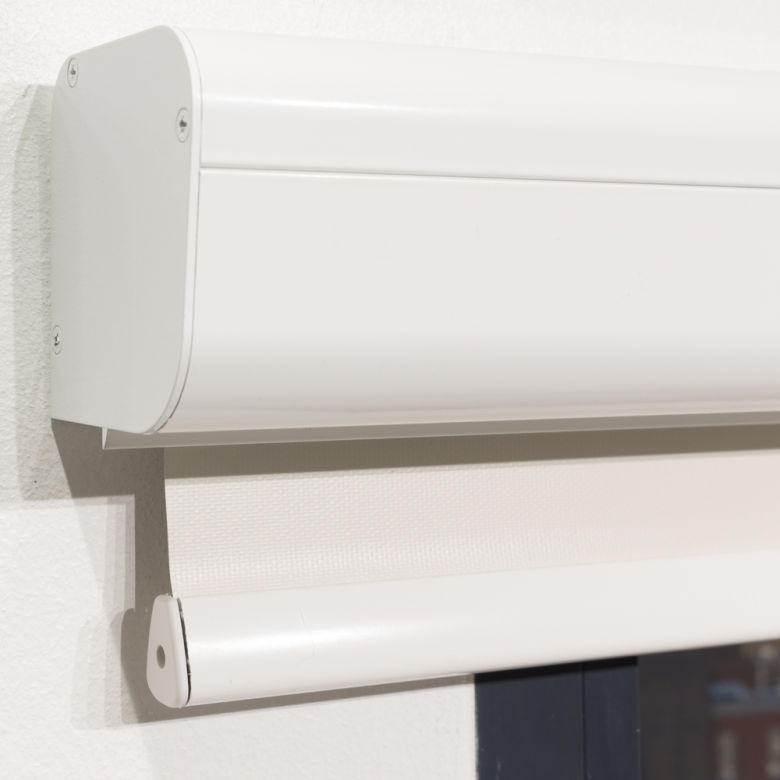

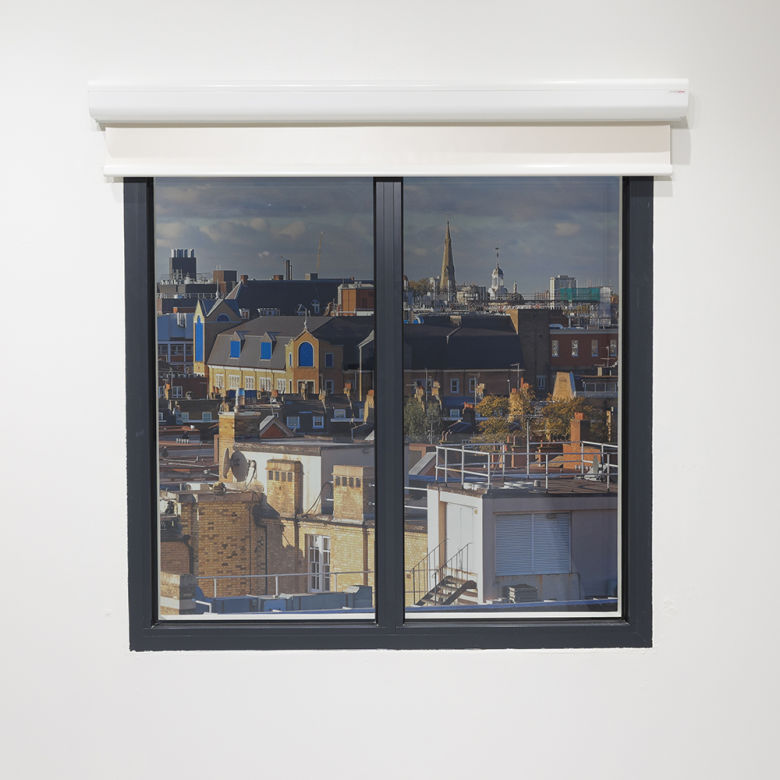

The C22 cassetted braked spring roller blind with premium quality spring and decelerator ensures smooth and quiet operation. Direct fix for top and face applications. The fabric is locked into a groove in the 32mm aluminium barrel, and features aluminium Tear Drop bottom bar. Click stops to hold blind at closed position. Black or white hardware as standard.

An attractive metal-framed blind with the added appeal of slow-rise, or braked, technology. Generally used in dim-out applications with blackout fabric, or as an insect screen with mesh fabric, as it has no mid-point stopping positions. The braked spring and decelerator mechanism is enclosed within the barrel.

Slow-Rise Spring C42

TheC42 cassetted braked spring roller blind comes with a premium quality spring and decelerator to ensure smooth and quiet operation. Direct fix for top and face applications. The fabric is locked into a groove in the 32mm aluminium barrel, and by pips in the side channels. It also features an aluminium bottom bar. Black or white hardware as standard.

An attractive metal-framed blind with the added appeal of slow-rise, or braked, technology. It is generally used to reduce levels of light in a room, or as an insect screen as it has no mid-point stopping positions. The braked spring and decelerator mechanism is enclosed within the barrel.

Crank C24

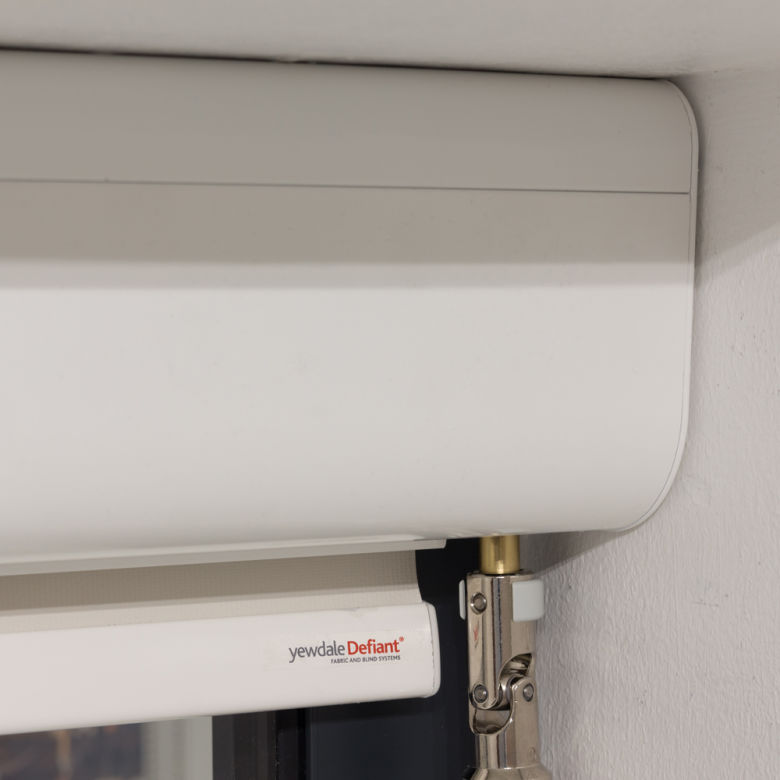

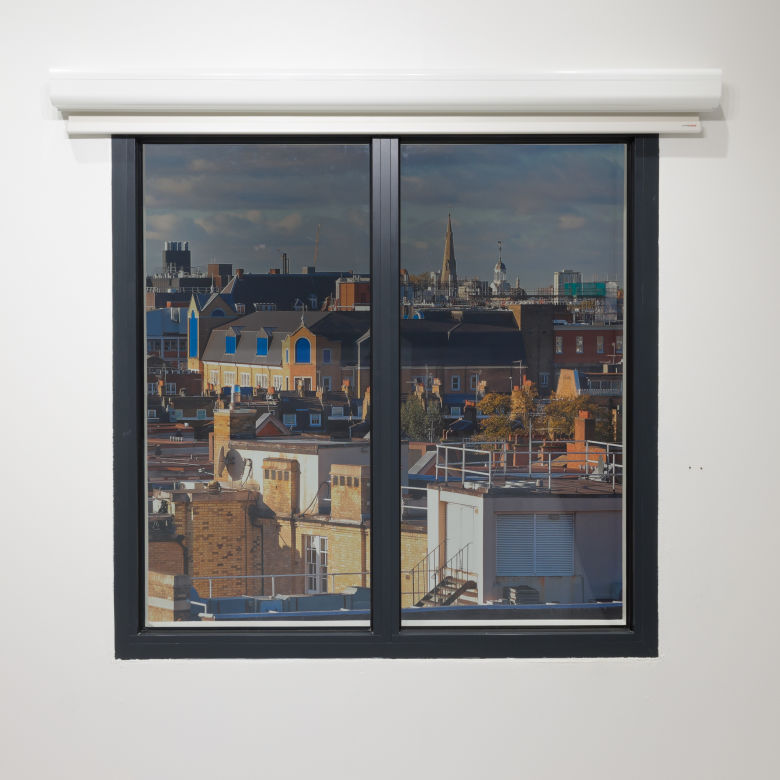

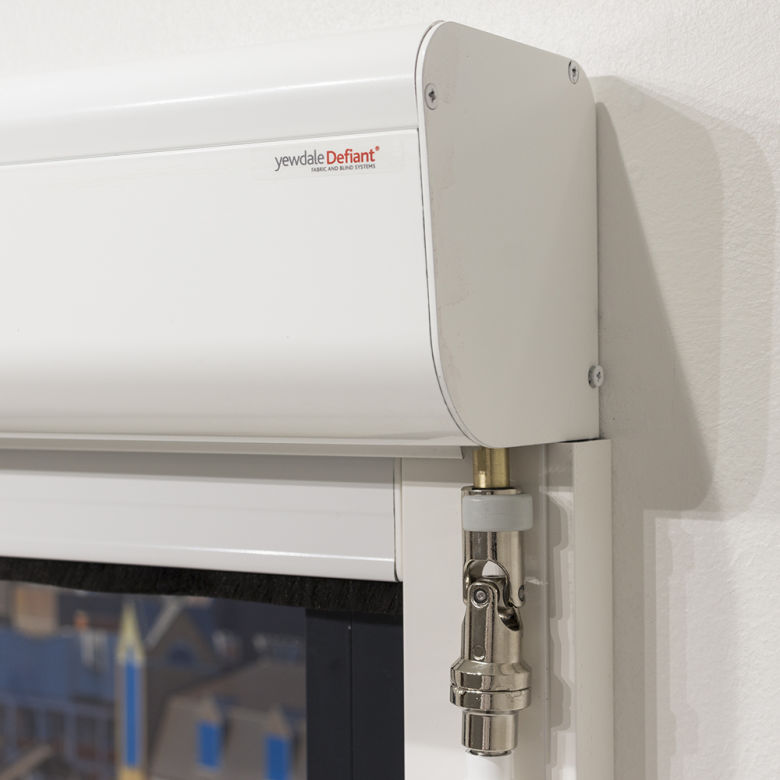

The C24 crank control cassetted blind features a compact, robust 1:3 gear mechanism operated by a detachable crank handle. The cassette is designed for top or face fixing and accommodates 45, 53 or 70mm grooved aluminium barrels, depending on blind size and fabric weight. The fabric is locked into a groove in the barrel. It has an aluminium Tear Drop bottom bar and black or white hardware as standard.

Durability and simplicity make the C24 a good choice for a vast range of applications. With its aluminium construction and powerful gear controls it will perform dependably in all kinds of contract applications. The geared crank handle and mechanism ensures smooth blind control and is safer for areas where cords are a threat. Fabric is locked into the barrel and bottom bar and supported by sturdy supports.

Crank C44

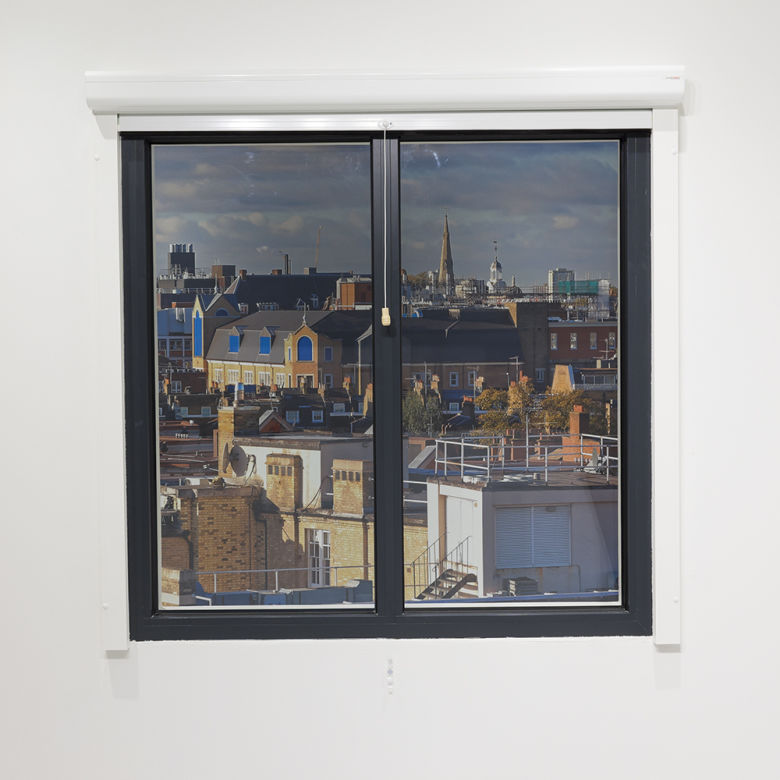

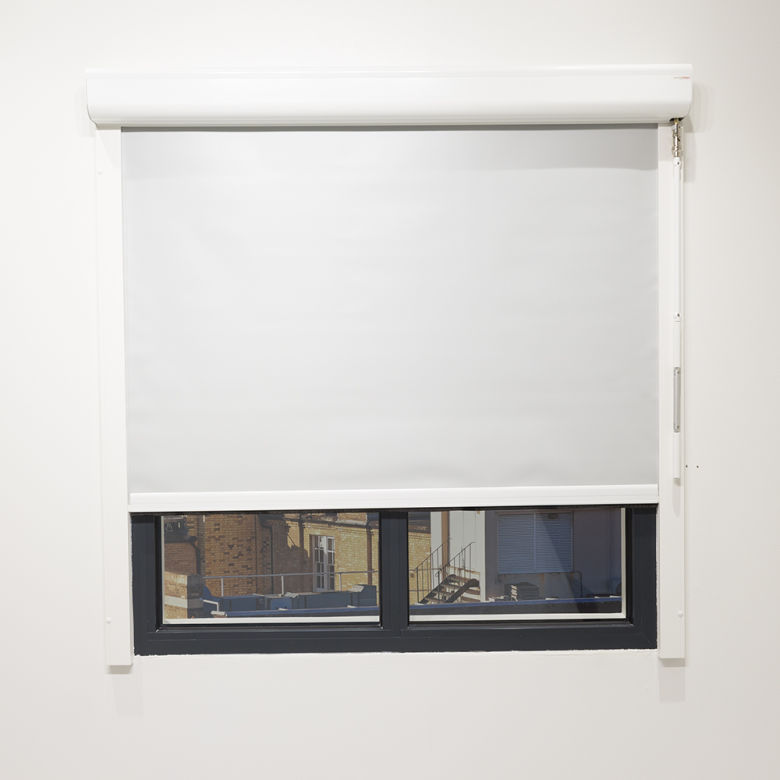

The C44 crank control cassetted blind features a compact, robust 1:3 gear mechanism operated by a detachable crank handle. The cassette is designed for top or face fixing and accommodates 45, 53 or 70mm grooved aluminium barrels, depending on blind size and fabric weight. The fabric is locked into a groove in the barrel with studs fitted at the edges of fabric to retain it within the side channels. Aluminium bottom bar. Black or white hardware as standard.

Durability and simplicity make the C44 a good choice for a vast range of applications. With its aluminium side channels and powerful gear controls it will perform dependably in all kinds of contract applications. The geared crank handle and mechanism ensures smooth blind control and is safer for areas where cords are a threat. Fabric locked into the barrel and bottom bar and supported by sturdy supports.

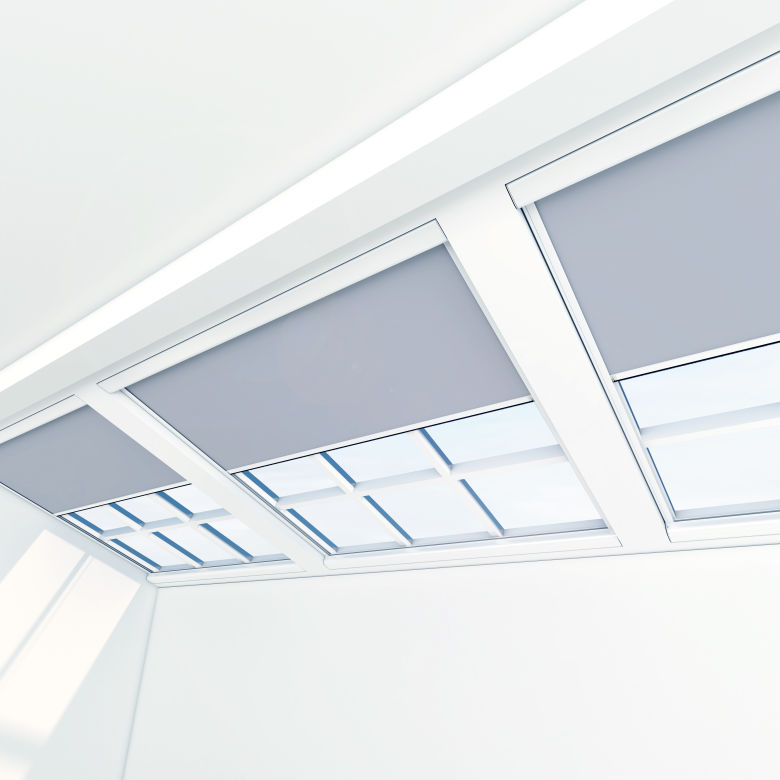

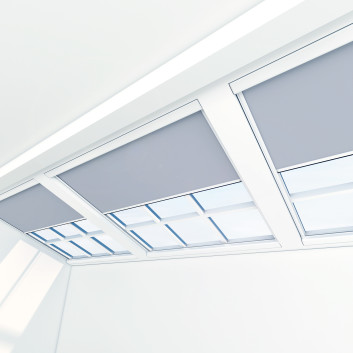

Overhead Crank C56T

Smooth operation and complete control is what makes the C56T overhead cassetted blind so inspiring. The 1:5 gear control crank mechanism allows you to easily operate the blind, and the fabric is held in place in the side channels. This blind is drawn across the window by tensioned spring units in the cassette and the powder-coated aluminium headbox is slim anddiscreet, making it ideal for buildings looking for a stylish overhead blind. The C56T can be made to a maximum size of 3m x 3m. We recommend the SkyShelf for optimum installation within a recess.

The C56T overhead cassetted blind is a diverse, bracketless shading solution that provides control over the amount of light entering a large overhead window. However, unlike other overhead blinds, this solution is discreet. The headbox and side channels are slim and available in black or white powder-coated

Low Voltage Electric C25

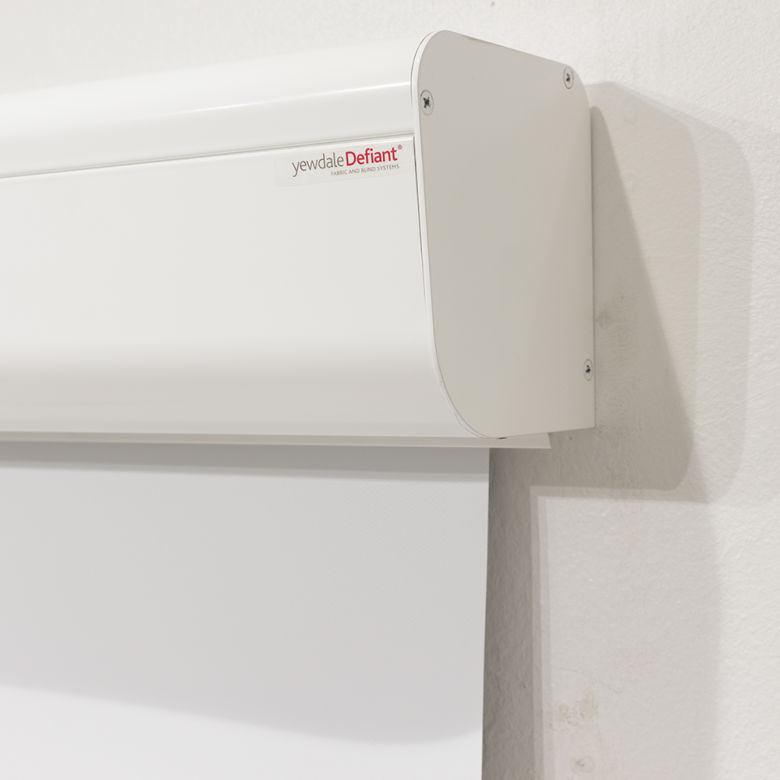

The C25 electric cassetted blind features a low voltage Yewdale motor as standard. The cassette is designed for top or face fixing and accommodates 40mm grooved aluminium barrel, housing the 24v DC Yewdale motor. The motor is controlled by a switch/transformer which may be surface or flush mounted. The fabric is locked into a groove in the barrel. It has an aluminium Tear Drop bottom bar and black or white hardware as standard.

Fingertip control and a slim yet sturdy aluminium construction help this blind to lend an air of luxury to any environment and makes theC45 a perfect choice for motorised requirements. Its quiet and reliable motor is housed within the barrel and supported subtly without the use of brackets.

Low Voltage Electric C45

The C45 electric cassetted blind with side channels features a low voltage Yewdale motor as standard. Cassette is designed for top or face fixing and accommodates a 40mm grooved aluminium barrel, housing the 24v DC Yewdale motor. The motor is controlled by a switch/transformer which may be surface or flush mounted. The fabric is locked into a groove in the barrel with studs fitted at the edge of the fabric to retain it within the side channels. Aluminium Tear Drop bottom bar. Black or white hardware as standard.

Fingertip control and a slim yet sturdy aluminium frame helps this blind to lend an air of luxury to any environment and makes the C45 a perfect choice for motorised requirements. The quiet and reliable motor is housed within the barrel and supported subtly without the use of brackets.

Electric C27

The C27 electric cassetted blind features a Yewdale motor as standard. The cassette is designed for top or face fixing and accommodates 40mm grooved aluminium barrel, housing the 240v AC motor. The motor is controlled by a switch/transformer which may be surface or flush mounted. The fabric is locked into a groove in the barrel with studs fitted at edge of fabric to retain it within side channels. Also, there is an aluminium Tear Drop bottom bar and black or white hardware as standard.

The C27 offers a premium electric operated cassetted blind for situations where durability and functionality are required. Its quiet and reliable motor is housed within the barrel and further protected by the robust aluminium head-box housing. The fabric is locked into the barrel and bottom bar and will give years of trouble-free use. It is located in the groove in such a way that, although it cannot be pulled out it may be slid out sideways for easy repair or replacement of blind cover.

Electric C47

The C47 electric cassetted blind with side channels features a motor as standard. The cassette is designed for top or face fixing and accommodates a 40mm grooved aluminium barrel, housing the 230v AC motor. The motor is controlled by a switch/transformer which may be surface or flush mounted. The fabric is locked into a groove in the barrel with studs fitted at the edge of the fabric to retain it within the side channels. Aluminium Tear Drop bottom bar. Black or white hardware as standard.

The C47 offers a premium electric operated cassetted blind for situations where durability and functionality are required. It’s quiet and reliable motor is housed within the barrel and further protected by the robust aluminium head-box housing. The fabric is locked into barrel and bottom bar and will give years of trouble-free use. It is located in the groove in such a way that, although it cannot be pulled out it may be slid out sideways for easy repair or replacement of blind cover.

Electric C49

The C49 electric cassetted blind with side channels features a 7.4v DC battery powered tubular motor. The cassette is designed for top or face fixing which accommodates a 40mm grooved aluminium barrel, housing the motor. The motor makes operation easy thanks to its remote control, with a quiet and soft start/stop motion and electronic stops. The fabric is locked into a groove in the barrel with studs fitted at the edge of the fabric to retain it within the side channels. Aluminium bottom bar. Black or white hardware as standard.

The C49 will keep the fabric looking its best thanks to the protection afforded by the headbox and the tracker side channels keeping the fabric taut. The remote control operated motorised elements of this system ensure ease of use and the limit stop functionality provides four intermediate pre-sets the user can set to stop the blind at different levels throughout the day.

Electric battery powered C29

The C29 electric cassetted blind with side channels features a 7.4v DC battery powered tubular motor. The cassette is designed for top or face fixing which accommodates a 40mm grooved aluminium barrel, housing the motor. The motor makes operation easy thanks to its remote control, with a quiet and soft start/stop motion and electronic stops. The fabric is locked into a groove in the barrel and an aluminium bottom bar. Black or white hardware as standard.

The C29 is a stylish and sturdy system that provides quiet functionality thanks to its motorised features. The remote control operated motorised elements of this system ensure ease of use and the limit stop function provides four intermediate pre-sets the user can set to stop the blind at different levels throughout the day.

Overhead Electric C57T – AC Motor

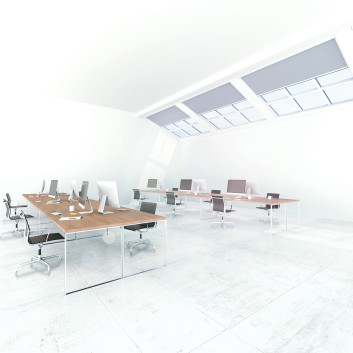

The C57T overhead electric cassetted blind comes with a 230v AC Tubular Motor as standard. At the touch of a button from the remote switch (sold separately), the blind can open and close, shading ceiling windows with ease. This blind is quietly drawn across the window by tensioned spring units. Fabric is neatly held in place and remains taut by the side channels. The powder-coated aluminium headbox provides a discreet and stylish solution for overhead shading. The C57T can be made to a maximum size of 3m X 3m. We recommend the SkyShelf for optimum installation within a recess.

The C57T provides absolute control over the blind at the touch of a button due to the single channel hand held transmitter, making this blind easy to operate in otherwise difficult areas. The discreet and slim powder-coated aluminium headbox allows the blind to blend in with the interior design of the room whilst providing the shading solution required. This blind is bracket less which eliminates room for light. It is simpler to install in comparison to other overhead blinds.
