Crank Roller Blinds

Crank

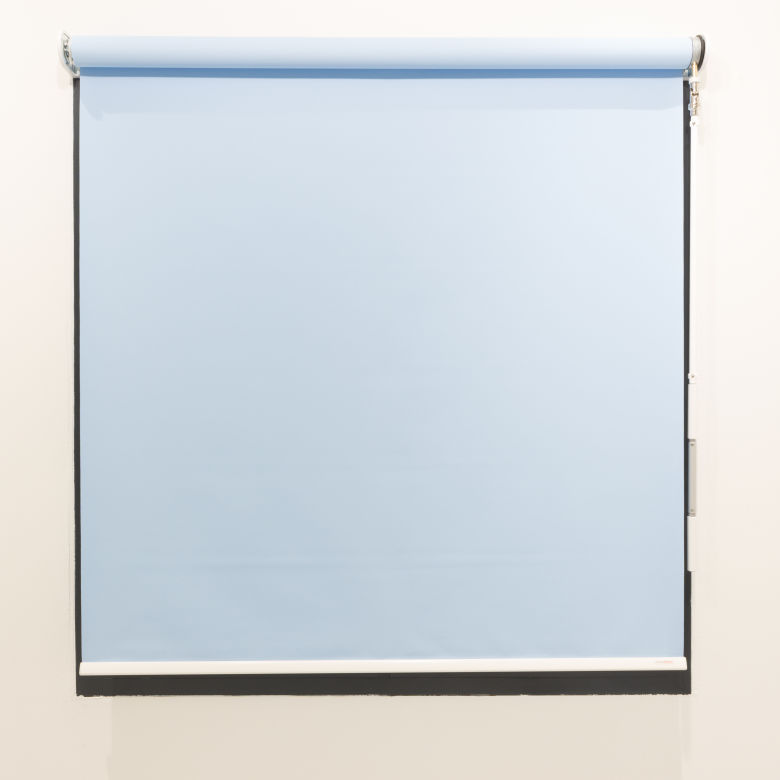

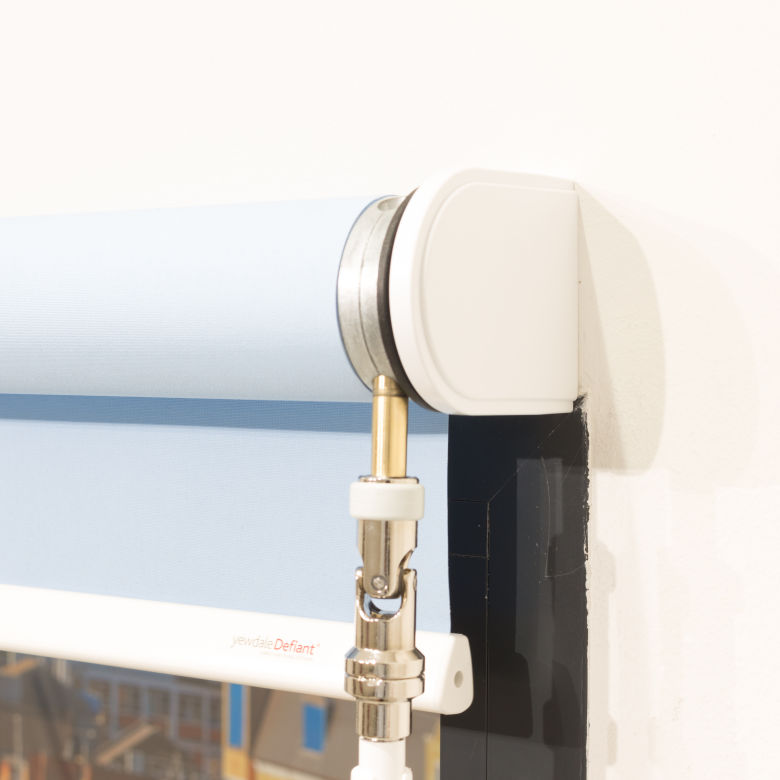

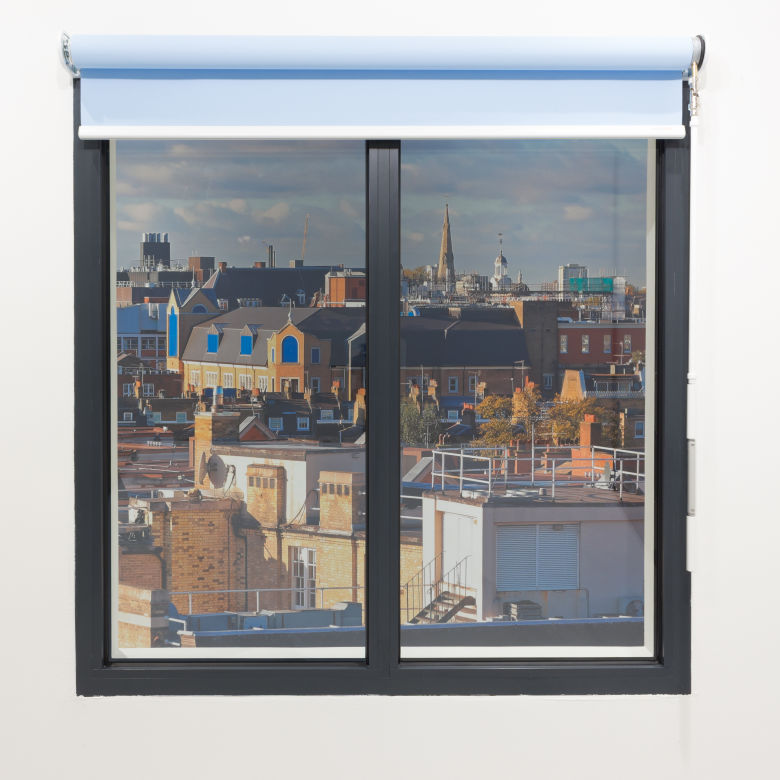

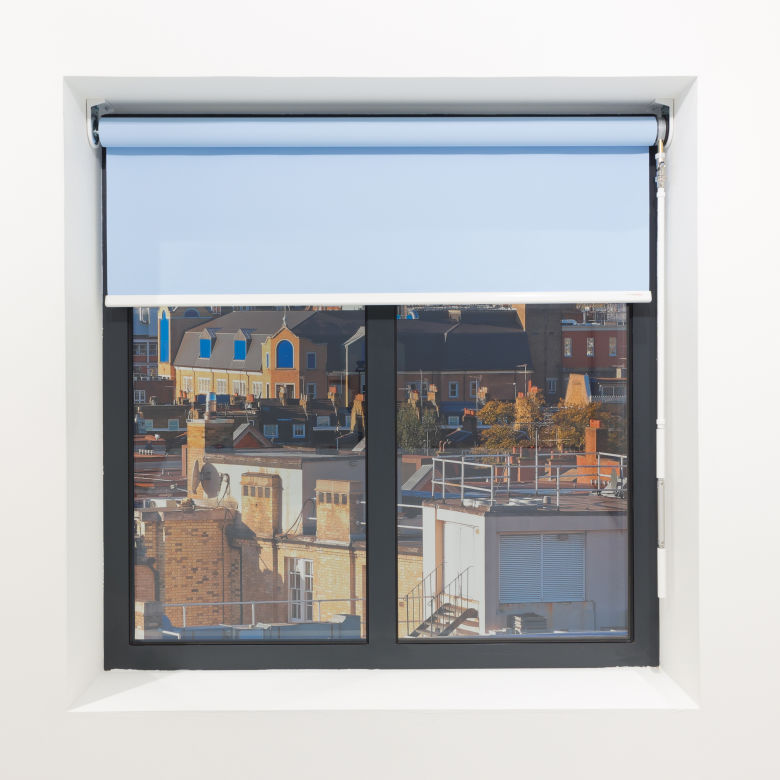

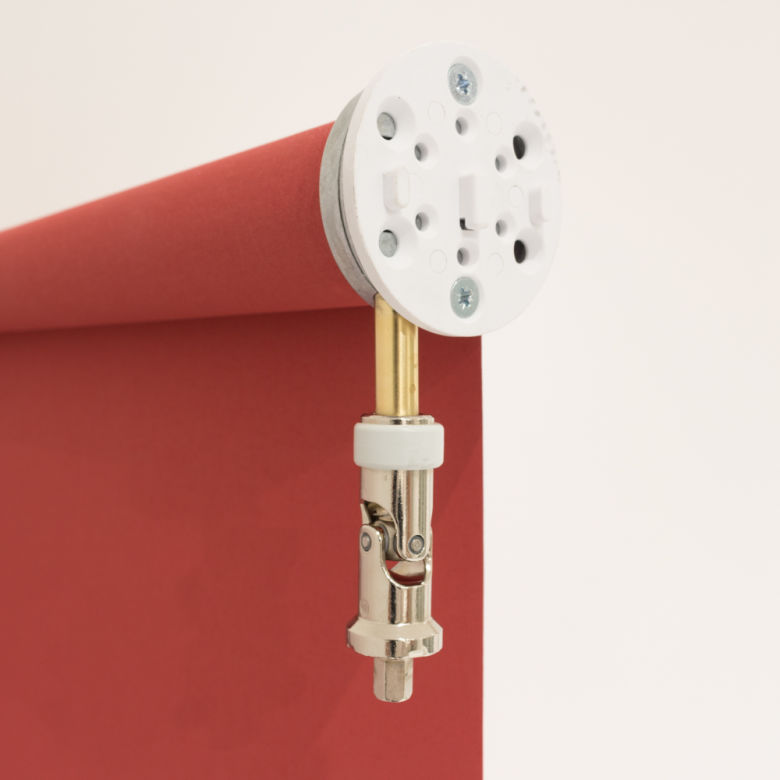

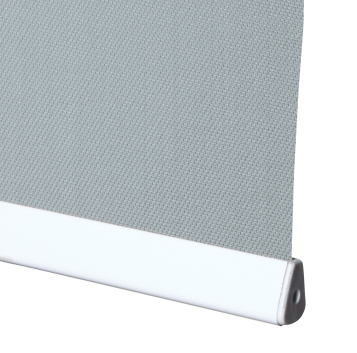

crank control roller blind features a 45mm grooved aluminium barrel and white metal universal brackets for face or top fixing. A robust 1:5 crank mechanism ensures smooth blind control, and incorporates a magnetic detachable crank handle. The fabric is locked into a groove in the barrel, and features a white Tear Drop aluminium bottom bar as standard.

Durability and simplicity make the R20C a good choice for a vast range of applications. The detachable magnetic crank ensures the blind is vandal resistant and safe for areas where cords are a threat. The fabric is locked into the barrel and bottom bar and supported by sturdy, stylish metal brackets.

Light Duty Crank

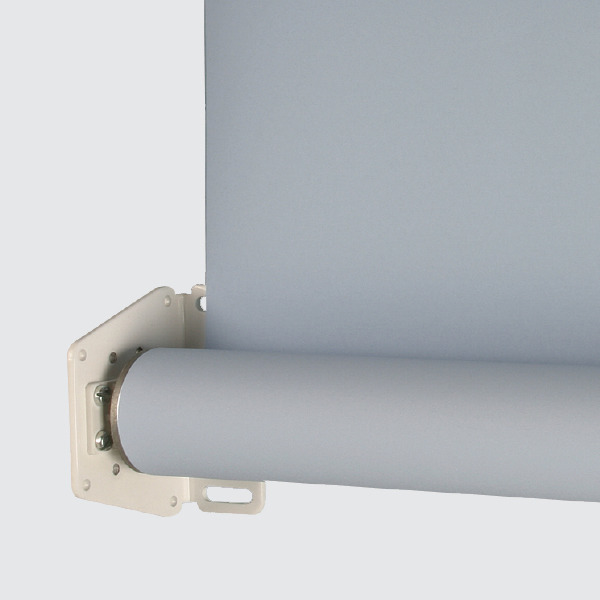

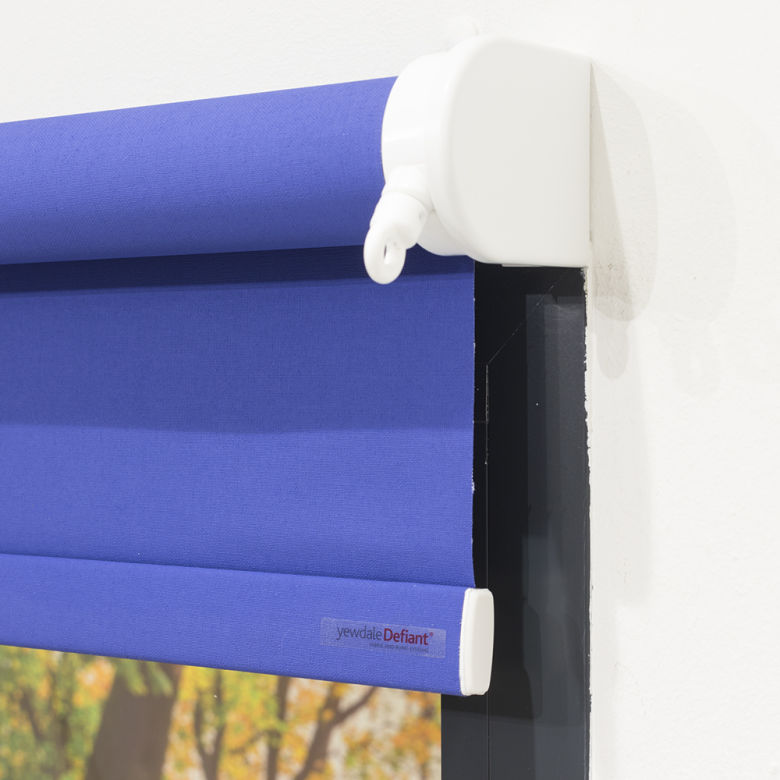

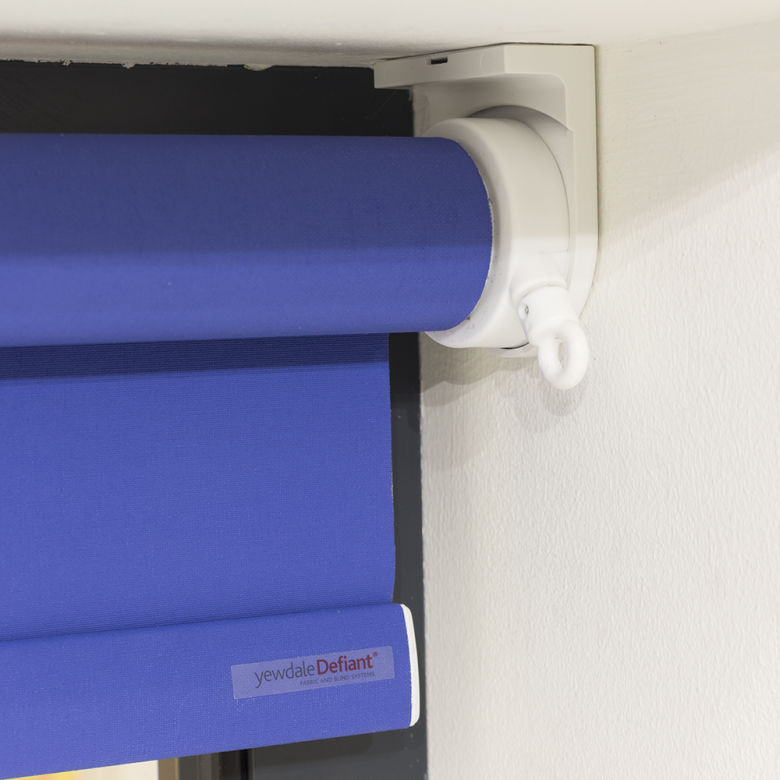

The plastic crank controlled roller blind features a 40mm grooved aluminium barrel and white metal universal brackets for face or top fixing. The robust plastic wind mechanism ensures very smooth blind control, operated by a detachable handle (handle sold separately). The fabric is locked into a groove in the barrel, and features a white plastic bottom bar as standard.

Durability and simplicity make the R20W a good choice for a vast range of applications. The detachable handle (handle sold separately) ensures the blind is vandal resistant and safe for areas where cords are a danger. The fabric is locked into the barrel and bottom bar, supported by sturdy metal brackets, and the mechanism is encased within a plastic housing.

Heavy Duty Crank

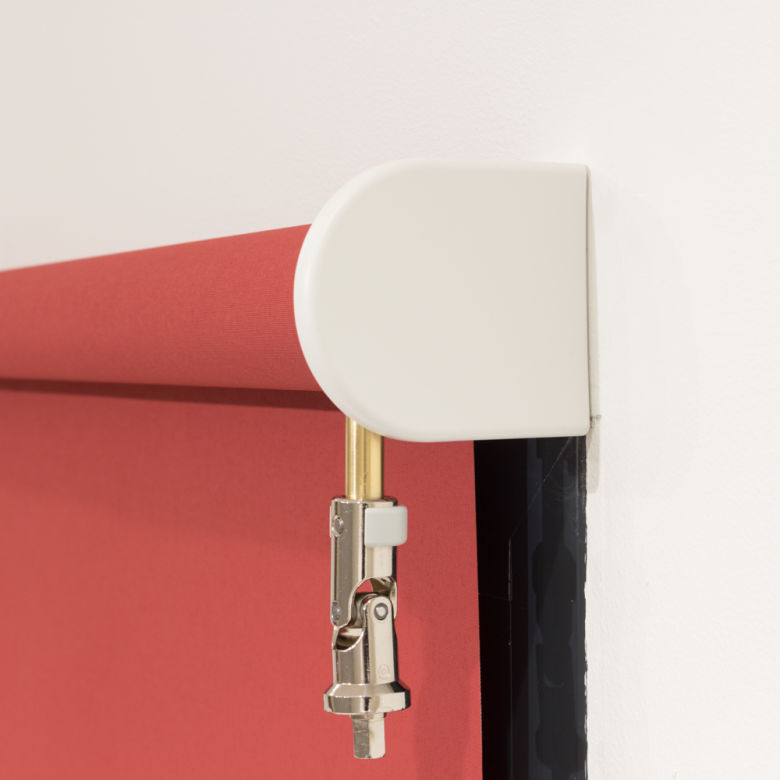

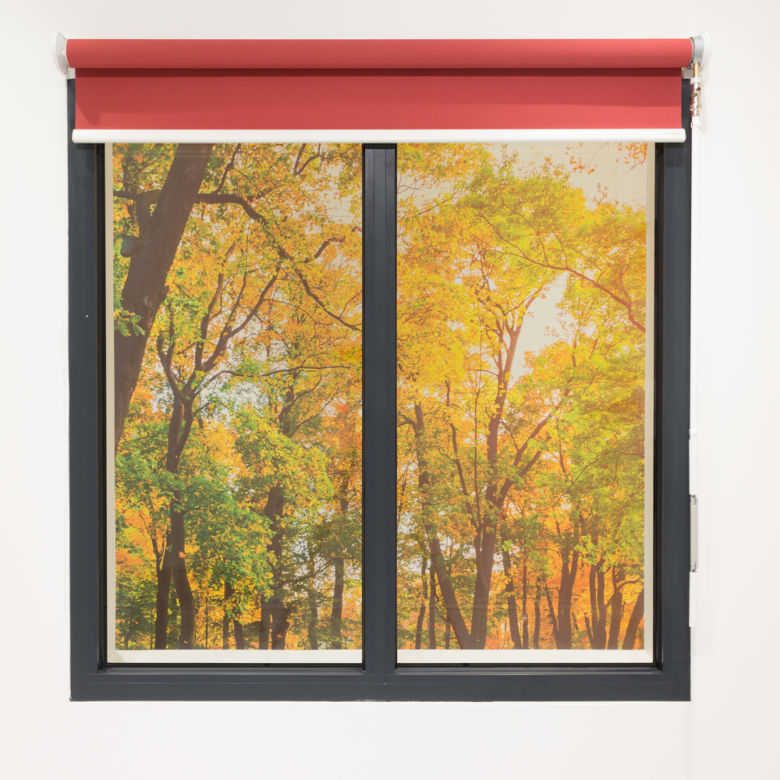

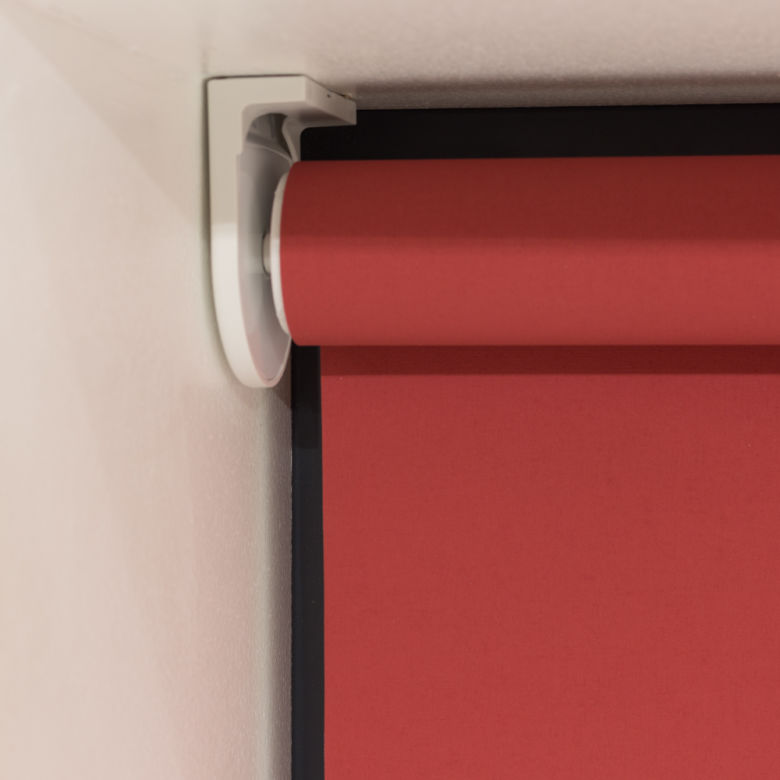

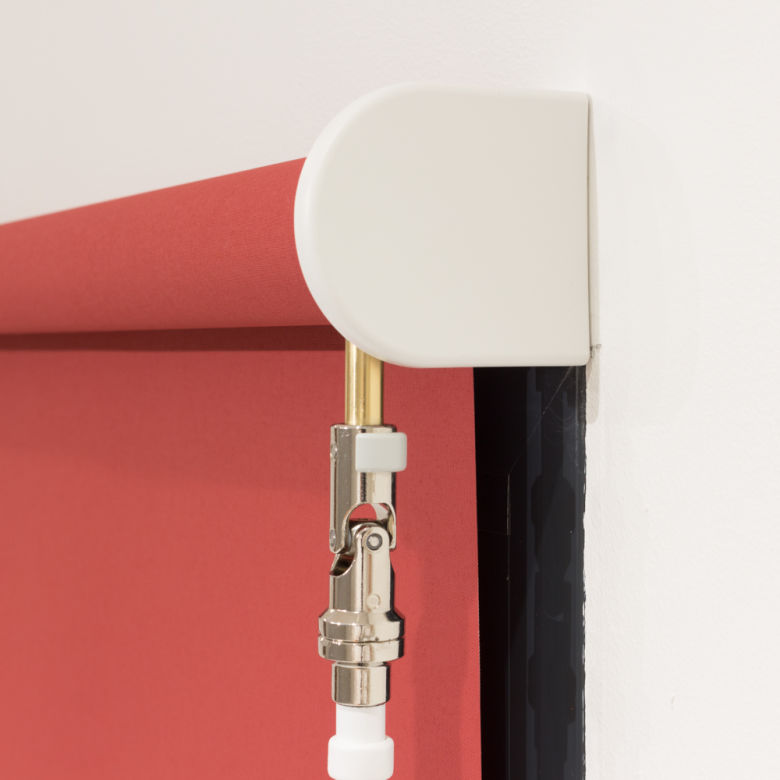

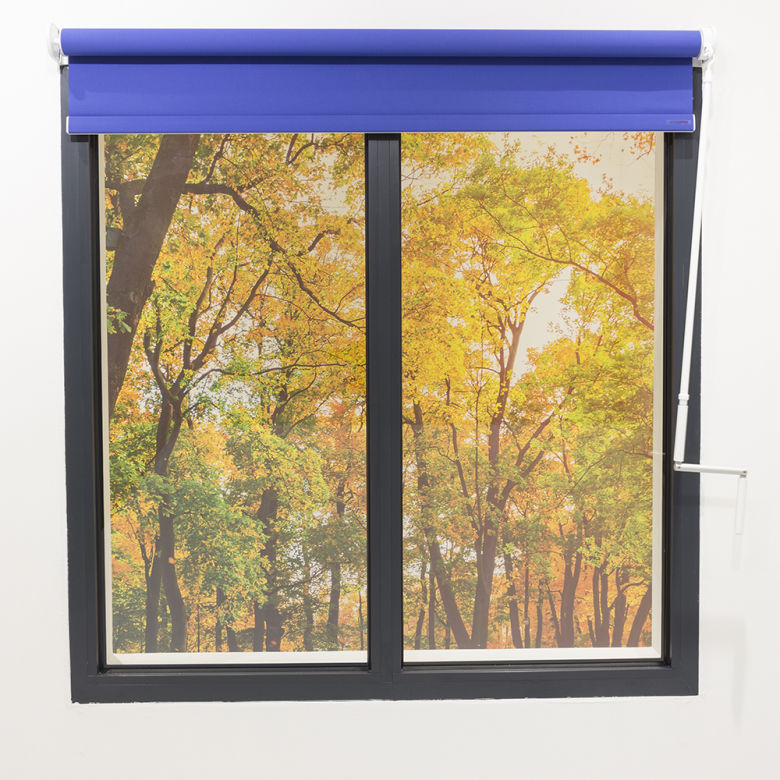

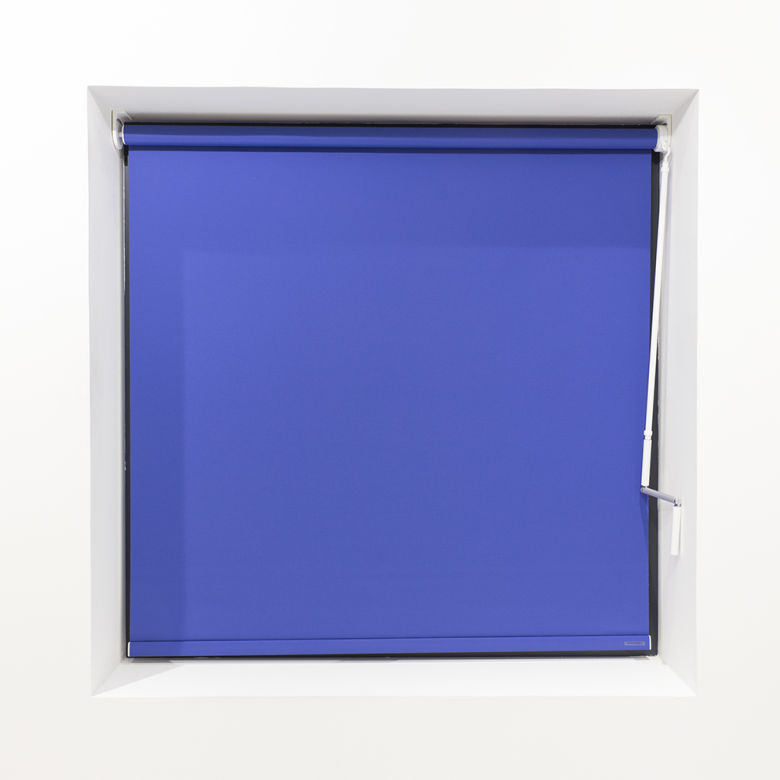

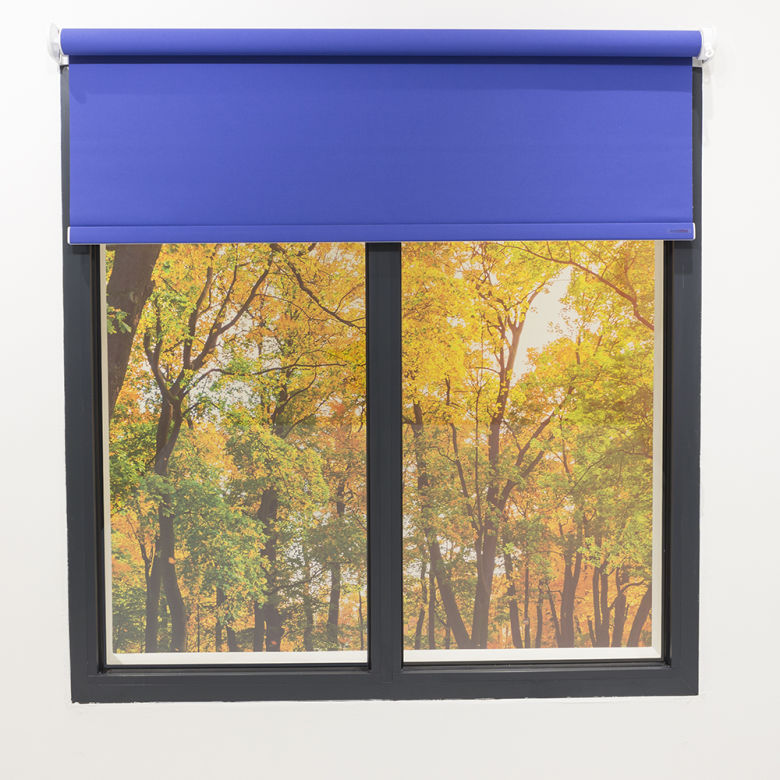

The heavy duty crank control roller blind features a heavy duty 1:3 crank mechanism for effective operation of large blinds. Operated by a magnetic detachable crank handle, and accommodating robust grooved aluminium barrel, this system is built to last. Choose from white plastic covered brackets or metal brackets for face or top fixing, and with 53mm or 70mm grooved aluminium barrel, depending on blind size and fabric weight. The fabric is locked into a groove in the barrel, and features a white Tear Drop aluminium bottom bar as standard.

The strongest manual control blind from the range. The R54 is designed to cope, and built to last. The fabric is located in the groove in such a way that, although it cannot be pulled out, it may be slid out sideways for easy repair or replacement of the blind cover. The removable crank means that the blind cannot be tampered with by unauthorised personnel. Ideal for situations when a large blind size is required, or when vandal-resistance is a priority.

Overhead Crank

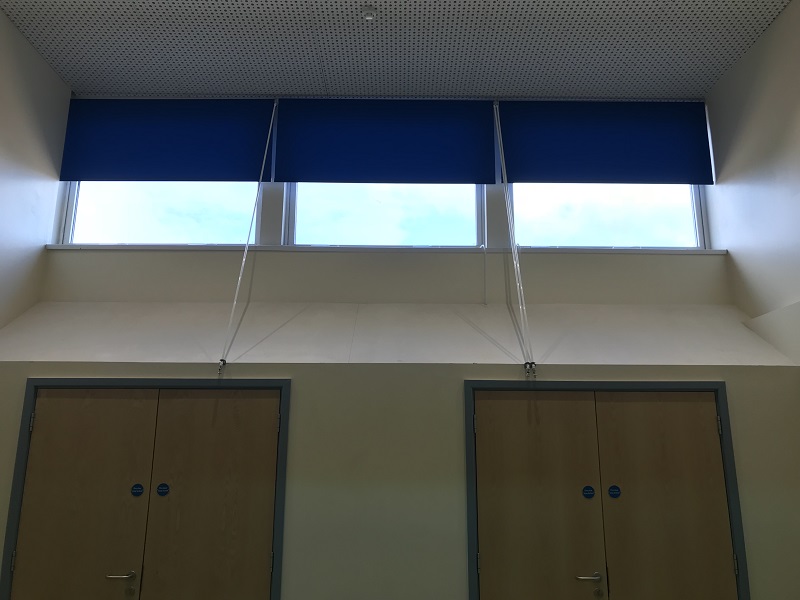

This R56 overhead roller blind system is supplied with crank operation. White aluminium brackets allow for top or face fixing with 50mm and 57mm grooved aluminium barrels. The fabric is mounted onto a sprung 57mm aluminium barrel whilst at the other end it is fitted to a white Tear Drop aluminium bottom bar, attached to two draw tapes. These tapes are attached between flanged guides to the 50mm drive barrel, operated by 1:4 gear control mechanism and crank handle.

Both the R56 and the R57 roller blinds are the ultimate in choice for the shading requirements for sloping or horizontal roof windows. With heavy duty componentry and a powerful spring action, these blinds may be confidently specified for awkward or inaccessible locations. The detachable magnetic crank handle provided with this model removes the common issues associated with locating the drive at height and solves the problem of unauthorised use.

Crank C24

The C24 crank control cassetted blind features a compact, robust 1:3 gear mechanism operated by a detachable crank handle. The cassette is designed for top or face fixing and accommodates 45, 53 or 70mm grooved aluminium barrels, depending on blind size and fabric weight. The fabric is locked into a groove in the barrel. It has an aluminium Tear Drop bottom bar and black or white hardware as standard.

Durability and simplicity make the C24 a good choice for a vast range of applications. With its aluminium construction and powerful gear controls it will perform dependably in all kinds of contract applications. The geared crank handle and mechanism ensures smooth blind control and is safer for areas where cords are a threat. Fabric is locked into the barrel and bottom bar and supported by sturdy supports.

Crank C44

The C44 crank control cassetted blind features a compact, robust 1:3 gear mechanism operated by a detachable crank handle. The cassette is designed for top or face fixing and accommodates 45, 53 or 70mm grooved aluminium barrels, depending on blind size and fabric weight. The fabric is locked into a groove in the barrel with studs fitted at the edges of fabric to retain it within the side channels. Aluminium bottom bar. Black or white hardware as standard.

Durability and simplicity make the C44 a good choice for a vast range of applications. With its aluminium side channels and powerful gear controls it will perform dependably in all kinds of contract applications. The geared crank handle and mechanism ensures smooth blind control and is safer for areas where cords are a threat. Fabric locked into the barrel and bottom bar and supported by sturdy supports.

Overhead Crank C56T

Smooth operation and complete control is what makes the C56T overhead cassetted blind so inspiring. The 1:5 gear control crank mechanism allows you to easily operate the blind, and the fabric is held in place in the side channels. This blind is drawn across the window by tensioned spring units in the cassette and the powder-coated aluminium headbox is slim anddiscreet, making it ideal for buildings looking for a stylish overhead blind. The C56T can be made to a maximum size of 3m x 3m. We recommend the SkyShelf for optimum installation within a recess.

The C56T overhead cassetted blind is a diverse, bracketless shading solution that provides control over the amount of light entering a large overhead window. However, unlike other overhead blinds, this solution is discreet. The headbox and side channels are slim and available in black or white powder-coated
